Statistical Process Monitoring for Functional Data

Introduction

Statistical Process Monitoring (SPM) extends classical control charts to functional data. When the “quality characteristic” is an entire curve (e.g., a spectral profile, a temperature trajectory, or a process signature), univariate control charts on summary statistics lose information. Functional SPM monitors the full curve structure.

SPM Pipeline: Phase I estimation and Phase II monitoring

The workflow has two phases:

Phase I — Estimate the in-control process using historical “good” data: perform FPCA, compute Hotelling $T^2$ and Squared Prediction Error (SPE) statistics, and set control limits.
Phase II — Monitor new observations by projecting onto the Phase I principal components and comparing statistics to the control limits. Alarms fire when a statistic exceeds its Upper Control Limit (UCL).

When to Use Functional SPM

Scenario	Method
Single functional quality variable	`spm.phase1()` + `spm.monitor()`
Multiple functional variables	`mf.spm.phase1()` + `mf.spm.monitor()`
Detecting gradual drifts	`spm.ewma()`
Process with known covariates	`frcc()` + `frcc.monitor()`
Diagnosing alarm root cause	`spm.contributions()`

Simulating Process Data

We simulate semiconductor wafer thickness profiles: each curve is a spectral measurement across the wafer surface. Phase I uses 200 in-control profiles; Phase II introduces a shift at observation 30.

set.seed(42)

m <- 50  # grid points
t_grid <- seq(0, 1, length.out = m)

# In-control process: smooth curves with random variation
n_ic <- 200  # Phase I observations
X_ic <- matrix(0, n_ic, m)
for (i in seq_len(n_ic)) {
  scores <- rnorm(3, sd = c(2, 1, 0.5))
  X_ic[i, ] <- 5 + scores[1] * sin(2 * pi * t_grid) +
                    scores[2] * cos(4 * pi * t_grid) +
                    scores[3] * sin(6 * pi * t_grid) +
                    rnorm(m, sd = 0.3)
}

# Phase II: 50 observations, shift at observation 30
n_new <- 50
X_new <- matrix(0, n_new, m)
for (i in seq_len(n_new)) {
  scores <- rnorm(3, sd = c(2, 1, 0.5))
  shift <- if (i >= 30) 1.5 * sin(2 * pi * t_grid) else 0
  X_new[i, ] <- 5 + scores[1] * sin(2 * pi * t_grid) +
                     scores[2] * cos(4 * pi * t_grid) +
                     scores[3] * sin(6 * pi * t_grid) +
                     shift + rnorm(m, sd = 0.3)
}

fd_ic <- fdata(X_ic, argvals = t_grid)
fd_new <- fdata(X_new, argvals = t_grid)

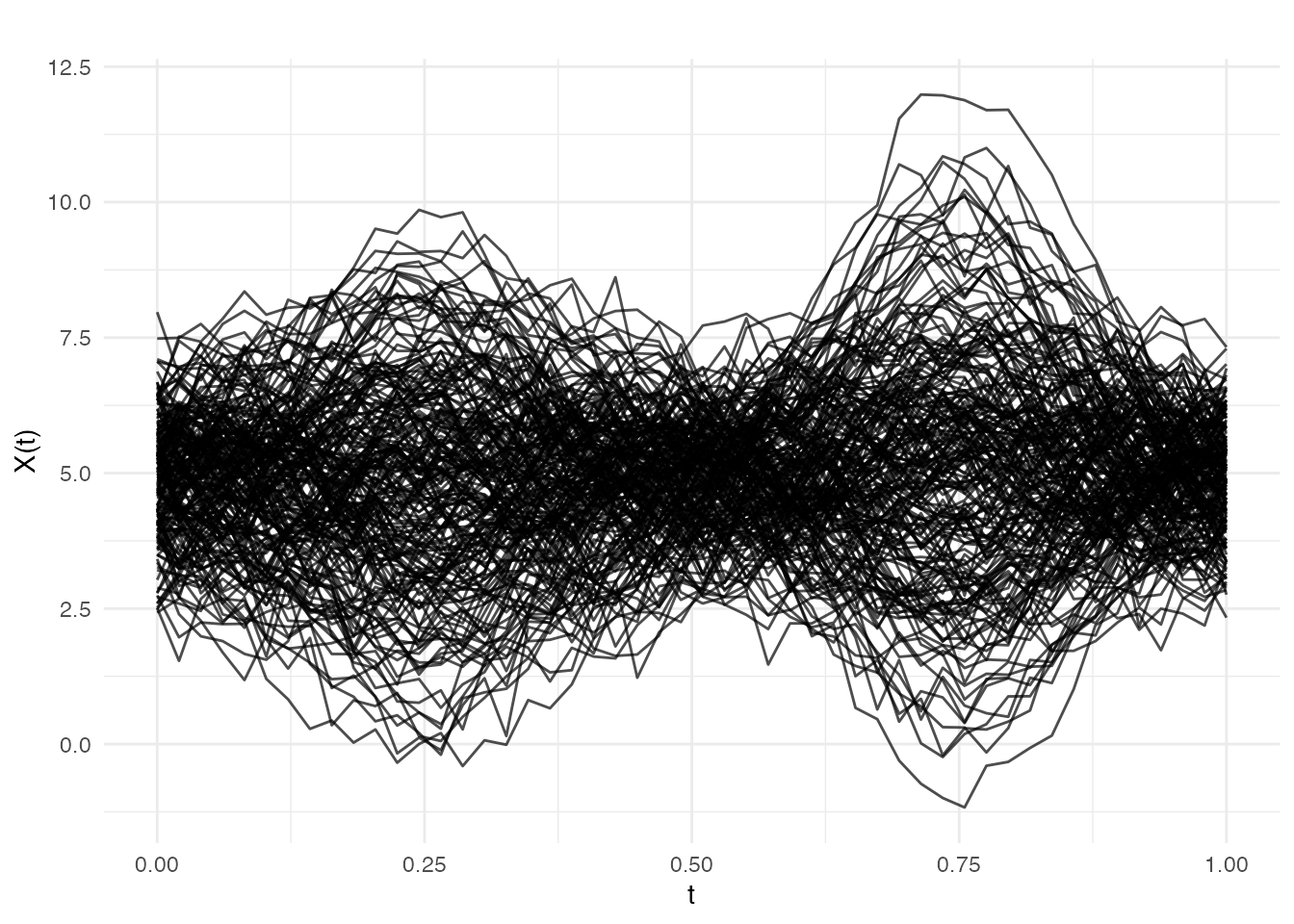

plot(fd_ic, main = "Phase I: In-Control Profiles",
     xlab = "Measurement Position", ylab = "Thickness")

Phase I: Estimating Control Limits

spm.phase1() performs FPCA on the in-control data, computes $T^2$ and SPE statistics for each training observation, and estimates control limits at significance level $\alpha$ .

chart <- spm.phase1(fd_ic, ncomp = 3, alpha = 0.05, seed = 42)
print(chart)
#> SPM Control Chart (Phase I)
#>   Components: 3
#>   Alpha: 0.05
#>   T2 UCL: 7.815
#>   SPE UCL: 0.1201
#>   Observations: 200
#>   Grid points: 50
#>   Eigenvalues: 1.607, 0.458, 0.119

The returned spm.chart object contains:

T2 control limit — based on the $F$ -distribution with ncomp and n - ncomp degrees of freedom
SPE control limit — estimated from the empirical distribution of Phase I SPE values
Phase I statistics — $T^2$ and SPE for each training observation (useful for checking that Phase I data is truly in-control)

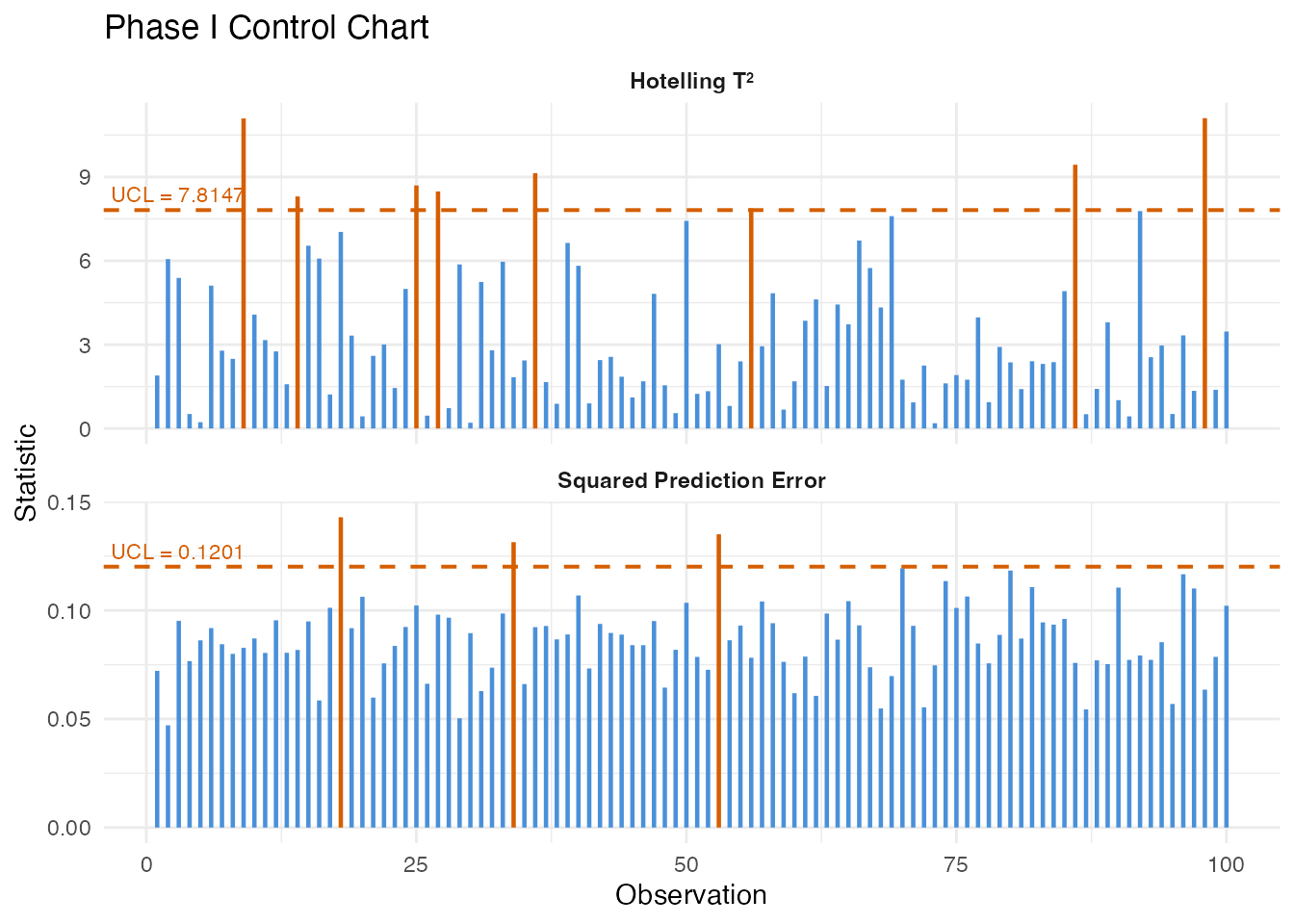

plot(chart)

Phase II: Online Monitoring

Project new observations onto the Phase I principal components and compare to control limits:

monitor <- spm.monitor(chart, fd_new)
print(monitor)
#> SPM Monitoring Result (Phase II)
#>   Observations: 50
#>   T2 alarms: 2 of 50 (4%)
#>   SPE alarms: 5 of 50 (10%)
#>   T2 UCL: 7.815
#>   SPE UCL: 0.1201

# Which observations triggered alarms?
alarm_idx <- which(monitor$t2.alarm | monitor$spe.alarm)
cat("Alarms at observations:", alarm_idx, "\n")
#> Alarms at observations: 4 16 26 34 44 46

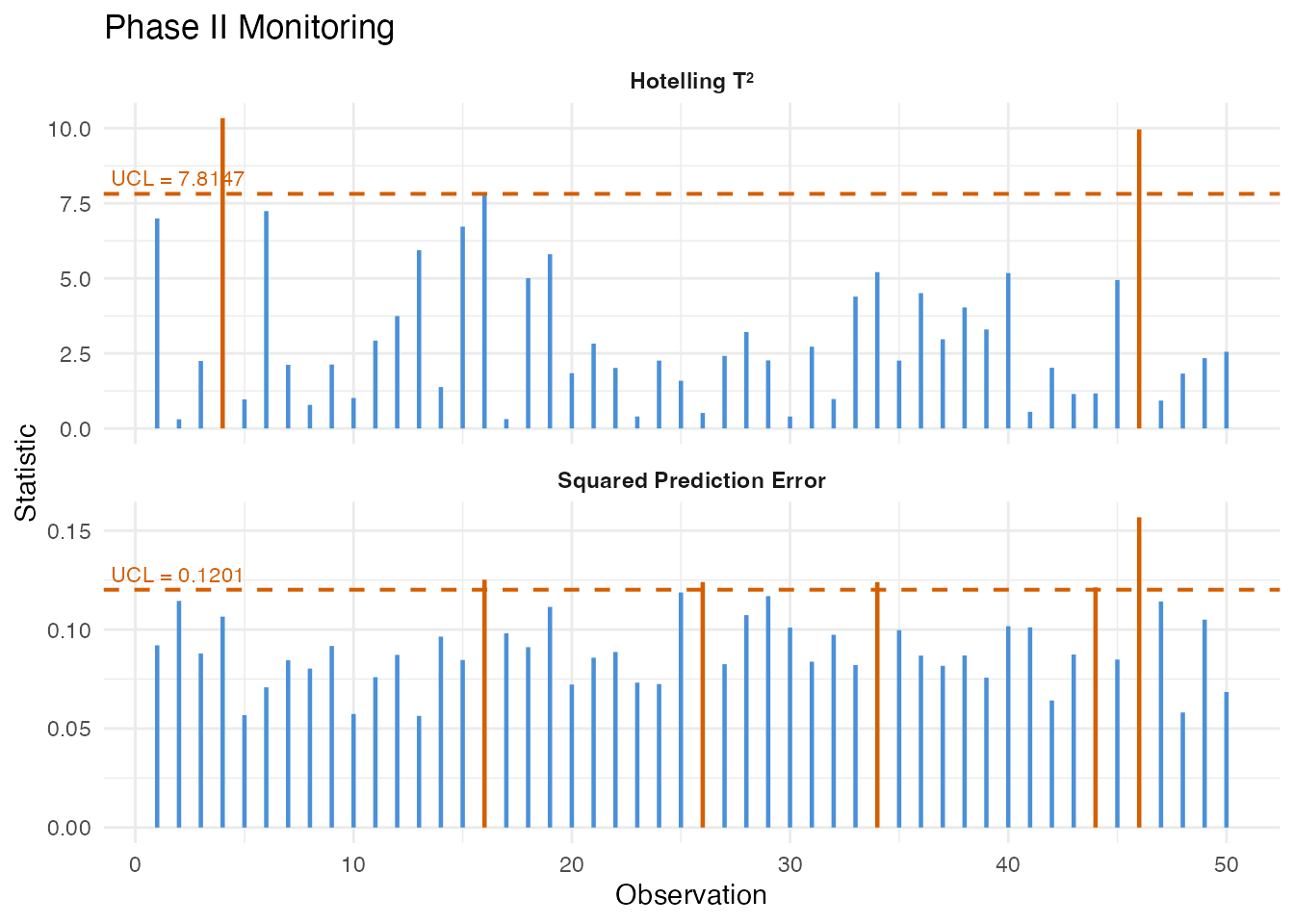

plot(monitor)

The monitoring result contains:

Field	Description
`t2`	Hotelling $T^2$ values for each new observation
`spe`	SPE values for each new observation
`t2.alarm`	Logical: did $T^2$ exceed the UCL?
`spe.alarm`	Logical: did SPE exceed the UCL?
`scores`	PC scores for the new observations

EWMA Monitoring

The Exponentially Weighted Moving Average (EWMA) chart smooths the monitoring statistics over time, making it more sensitive to small, persistent shifts than the standard Shewhart-type chart:

ewma_result <- spm.ewma(chart, fd_new, lambda = 0.2, alpha = 0.05)

cat("EWMA T2 alarms:", sum(ewma_result$t2.alarm), "\n")
#> EWMA T2 alarms: 9
cat("EWMA SPE alarms:", sum(ewma_result$spe.alarm), "\n")
#> EWMA SPE alarms: 5

The smoothing parameter $\lambda \in (0, 1]$ controls the memory: - $\lambda = 1$ gives the standard Shewhart chart (no smoothing) - $\lambda = 0.2$ (default) gives moderate smoothing - Smaller $\lambda$ detects smaller shifts but responds more slowly

Multivariate FPCA

When multiple functional variables are measured simultaneously (e.g., temperature, pressure, and flow rate profiles), Multivariate FPCA extracts joint modes of variation across all variables:

# Simulate two correlated functional variables
fd_var1 <- fdata(X_ic, argvals = t_grid)
fd_var2 <- fdata(X_ic + matrix(rnorm(n_ic * m, sd = 0.5), n_ic, m),
                 argvals = t_grid)

mfpca_result <- mfpca(list(fd_var1, fd_var2), ncomp = 3)
cat("Eigenvalues:", round(mfpca_result$eigenvalues, 3), "\n")
#> Eigenvalues: 69.642 18.471 4.308

The result contains joint scores and per-variable eigenfunctions, which can be used for multivariate SPM via mf.spm.phase1().

Contribution Diagnostics

When an alarm fires, the next question is: what went wrong? Contribution analysis decomposes the aggregate $T^2$ and SPE statistics into per-variable (or per-grid-region) contributions, pinpointing which part of the curve triggered the alarm.

T-squared Contributions

$T^2$ contributions break down the Hotelling statistic into additive terms, one per principal component. A large contribution from PC $k$ means that the curve’s score on the $k$ -th eigenfunction is unusually far from the in-control mean. This tells you which mode of variation shifted:

# T2 contributions: one value per PC per observation
t2_contrib <- spm.contributions(monitor$scores,
                                chart$eigenvalues,
                                grid.sizes = c(m),
                                type = "t2")

# Identify the first alarming observation
alarm_idx <- which(monitor$t2.alarm | monitor$spe.alarm)
first_alarm <- alarm_idx[1]
cat("First alarm at observation:", first_alarm, "\n")
#> First alarm at observation: 4
cat("T2 contributions (per PC):", round(t2_contrib[first_alarm, ], 3), "\n")
#> T2 contributions (per PC): 10.337

# Visualize T2 contributions for all monitoring observations
n_mon <- nrow(t2_contrib)
n_pc <- ncol(t2_contrib)
df_t2 <- data.frame(
  obs = rep(seq_len(n_mon), n_pc),
  contribution = as.vector(t2_contrib),
  pc = factor(rep(paste0("PC", seq_len(n_pc)), each = n_mon))
)

ggplot(df_t2, aes(x = obs, y = contribution, fill = pc)) +
  geom_col(position = "stack", width = 1) +
  geom_vline(xintercept = 29.5, linetype = "dashed", color = "red", linewidth = 0.5) +
  annotate("text", x = 29.5, y = max(rowSums(t2_contrib)) * 0.9,
           label = "Shift onset", hjust = 1.1, color = "red", size = 3) +
  scale_fill_brewer(palette = "Set2") +
  labs(title = expression("T"^2 * " Contributions by Principal Component"),
       x = "Monitoring Observation", y = expression("Contribution to T"^2),
       fill = "Component") +
  theme(legend.position = "bottom")

Since we injected a shift in the first eigenfunction direction ( $\sin(2\pi t)$ ), PC 1 should dominate the $T^2$ contributions after the shift onset at observation 30.

Identifying the Dominant Component

We can extract which principal component drives the alarm for each observation. This is especially useful for directing root-cause investigation:

# Which PC has the largest T2 contribution per observation?
dominant_pc <- apply(t2_contrib, 1, which.max)

df_dom <- data.frame(
  obs = seq_len(nrow(t2_contrib)),
  dominant = factor(paste0("PC", dominant_pc)),
  alarm = monitor$t2.alarm | monitor$spe.alarm
)

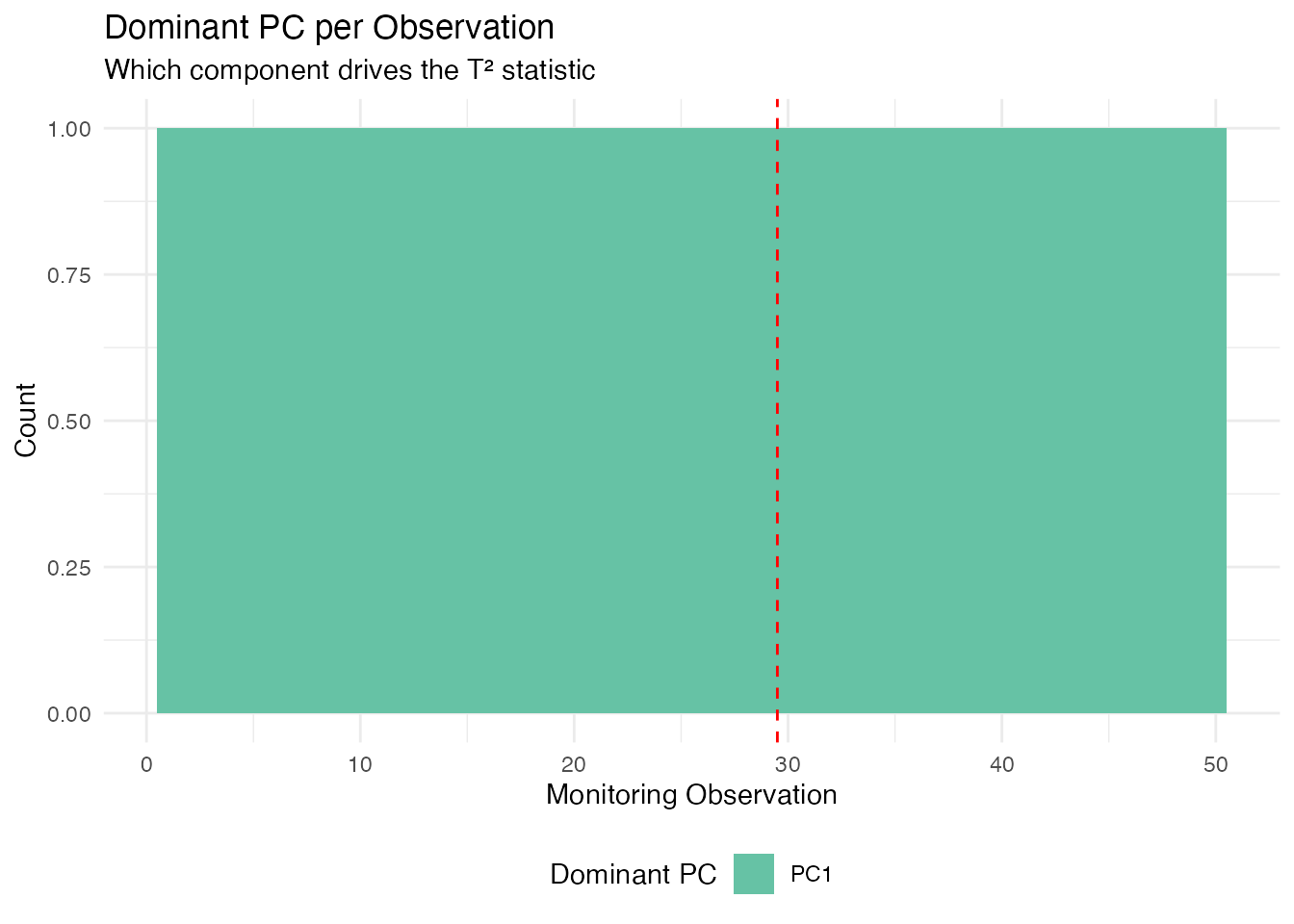

ggplot(df_dom, aes(x = obs, fill = dominant)) +
  geom_bar(width = 1) +
  geom_vline(xintercept = 29.5, linetype = "dashed", color = "red") +
  scale_fill_brewer(palette = "Set2") +
  labs(title = "Dominant PC per Observation",
       subtitle = "Which component drives the T\u00b2 statistic",
       x = "Monitoring Observation", y = "Count",
       fill = "Dominant PC") +
  theme(legend.position = "bottom")

After the shift onset (observation 30), PC 1 dominates because we injected a shift aligned with the first eigenfunction ( $\sin 2\pi t$ ).

Interpreting Contributions in Practice

Diagnostic	What it tells you	Typical action
T2 dominated by PC 1	Shift in the dominant mode of variation	Check for process mean shift
T2 dominated by higher PCs	Shift in a minor mode	Check for subtle process changes
SPE spike in a specific region	New variation not in the model	Inspect that region for sensor fault
SPE uniformly elevated	Global model inadequacy	Consider adding more PCs

In a multi-variable setting (using mf.spm.phase1()), the contributions are further broken down by variable, allowing you to identify which sensor or measurement channel is responsible for the alarm.

Elastic SPM

When functional data exhibit phase variation (timing differences between curves), standard SPM charts based on Euclidean FPCA can produce false alarms. Elastic SPM separates amplitude and phase components, monitoring each with its own control chart.

# Phase I: build elastic chart
chart_elastic <- spm.elastic.phase1(fd_train, ncomp = 3, alpha = 0.05,
                                     monitor.phase = TRUE, warp.ncomp = 3)

# Phase II: monitor new data
mon_elastic <- spm.elastic.monitor(chart_elastic, fd_test)

The elastic chart produces dual T²/SPE statistics for both amplitude and phase. Amplitude alarms indicate changes in curve shape; phase alarms indicate changes in timing or dynamics.

For a comprehensive tutorial on elastic SPM and advanced monitoring methods, see vignette("articles/advanced-spm").

Partial Domain Monitoring

In many applications, we need to monitor curves before they are fully observed — for example, monitoring a batch process while it is still running. Partial domain monitoring completes the unobserved portion of the curve and projects it through the existing control chart.

# Monitor a curve observed over only the first 70% of the domain
partial_values <- new_curve[1:35]  # first 35 of 50 grid points
result <- spm.monitor.partial(chart, partial.data = partial_values,
                               n.observed = 35,
                               completion = "conditional")
result$t2        # T² statistic
result$t2.alarm  # whether alarm is triggered

Three completion methods are available: "conditional" (BLUP, recommended), "projection" (scaled inner products), and "zero_pad" (mean padding).

For profile monitoring with covariates and batch processing of partial curves, see vignette("articles/profile-partial-monitoring").

Comparison of Methods

Method	Detects	Best for
T²	Mean shifts in the PC score space	Location changes in dominant modes
SPE	Changes not captured by the PCs	New types of variation, sensor drift
EWMA	Small persistent shifts	Gradual process degradation
FRCC	Shifts in the relationship between curves and covariates	Regression-based monitoring
CUSUM	Small sustained shifts	Drift detection with tunable sensitivity
MEWMA	Multivariate small shifts	Persistent shifts across multiple components
AMEWMA	Shifts of unknown size	Adaptive smoothing for mixed shift sizes
Elastic	Phase/amplitude changes	Phase-variable processes
Partial	Early detection mid-curve	In-progress batch monitoring

References

Colosimo, B.M. and Pacella, M. (2010). A comparison study of control charts for statistical monitoring of functional data. International Journal of Production Research, 48(6), 1575–1601.
Paynabar, K., Jin, J., and Pacella, M. (2013). Monitoring and diagnosis of multichannel nonlinear profiles using uncorrelated multilinear principal component analysis. IIE Transactions, 45(11), 1235–1247.
Grasso, M., Colosimo, B.M., and Pacella, M. (2014). Profile monitoring via sensor fusion: the use of PCA methods for multi-channel data. International Journal of Production Research, 52(20), 6110–6135.
