Biopharmaceutical Batch Monitoring: Penicillin Fermentation

library(fdars)
#>
#> Attaching package: 'fdars'
#> The following objects are masked from 'package:stats':
#>
#>     cov, decompose, deriv, median, sd, var
#> The following object is masked from 'package:base':
#>
#>     norm
library(ggplot2)
library(patchwork)
theme_set(theme_minimal())
set.seed(2024)

Overview

This article analyzes 100 batches of industrial-scale penicillin fermentation data from the IndPenSim simulator (Goldrick et al., 2015). Each batch produces time-series trajectories for temperature, dissolved oxygen, penicillin concentration, sugar feed rate, pH, and other process variables over 167-290 hours. Batches operate under three control strategies, and 10 batches contain intentional process faults.

1. Characterize batch-to-batch variability via FPCA
2. Build a monitoring chart from normal batches and detect faults
3. Compare control strategy tightness
4. Predict final yield from early-stage process trajectories
5. Identify which controllable variables most influence yield

Step	What It Does	Outcome
1. Load real data	Read IndPenSim 100-batch dataset, interpolate to common grid	6 process variables as fdata
2. Exploratory analysis	Spaghetti plots and group means by control strategy	Visual comparison of regimes
3. FPCA	Extract dominant modes of batch variation	Eigenfunction interpretation
4. Process monitoring	Phase I from recipe batches, Phase II fault detection	T-squared chart + detection rates
5. Precision & F1	Evaluate monitoring quality	Precision-recall trade-off
6. Yield prediction	Compare regression methods, CV-select optimal ncomp	Yield prediction from early data
7. Yield drivers	Screen 5 process variables, importance ranking	Actionable recommendations for operators

Dataset: Goldrick S. et al. (2015), The development of an industrial-scale fed-batch fermentation simulation, Journal of Biotechnology, 193:70-82. Data from Mendeley Data (DOI: 10.17632/pdnjz7zz5x.2, CC BY 4.0). Also available on Kaggle.

1. Loading the IndPenSim Data

The preprocessed RDS file contains 113,935 rows across 100 batches with 14 key process variables (Raman spectra excluded for efficiency). Batches have variable lengths (167-290 hours), so we interpolate to a common 167-hour grid that all batches cover.

# Load preprocessed data (see data-raw/ for extraction from Mendeley ZIP)
# pkgdown builds articles from the package root directory
data_dir <- "data-raw"
if (!dir.exists(data_dir)) {
  # Fallback: walk up from vignettes/articles/
  data_dir <- file.path("..", "..", "data-raw")
}
raw   <- readRDS(file.path(data_dir, "indpensim_process.rds"))
stats <- readRDS(file.path(data_dir, "indpensim_stats.rds"))

cat("Total rows:", nrow(raw), "\n")
#> Total rows: 113935
cat("Batches:", length(unique(raw$batch)), "\n")
#> Batches: 100
cat("Variables:", paste(setdiff(names(raw), "batch"), collapse = ", "), "\n")
#> Variables: time_h, aeration_Fg, agitator_RPM, sugar_feed_Fs, substrate_S, DO2, penicillin_P, volume_V, pH, temperature_T, heat_Q, CO2_offgas, OUR, CER

# Common time grid: 0 to 167 hours (min batch duration), 201 points
n_batches <- 100
m <- 201
t_grid <- seq(0.2, 167, length.out = m)

# Control strategy groups (from IndPenSim design)
groups <- factor(c(
  rep("Recipe",   30),    # batches 1-30: recipe-driven
  rep("Operator", 30),    # batches 31-60: operator-controlled
  rep("APC",      30),    # batches 61-90: Raman-based APC
  rep("Fault",    10)     # batches 91-100: intentional faults
), levels = c("Recipe", "Operator", "APC", "Fault"))

# Interpolate each batch to the common grid
interp_var <- function(raw, varname) {
  mat <- matrix(NA, n_batches, m)
  for (b in seq_len(n_batches)) {
    batch <- raw[raw$batch == b, ]
    mat[b, ] <- approx(batch$time_h, batch[[varname]],
                         xout = t_grid, rule = 2)$y
  }
  mat
}

pen_data  <- interp_var(raw, "penicillin_P")
temp_data <- interp_var(raw, "temperature_T")
do2_data  <- interp_var(raw, "DO2")
fs_data   <- interp_var(raw, "sugar_feed_Fs")
ph_data   <- interp_var(raw, "pH")
fg_data   <- interp_var(raw, "aeration_Fg")

# Yields: total penicillin in kg (from batch statistics)
total_yields <- stats[[4]]
# Final penicillin concentration at t=167h (direct fermentation performance)
final_pen <- pen_data[, m]

cat("Grid: 0.2 to 167 hours,", m, "points\n")
#> Grid: 0.2 to 167 hours, 201 points
cat("Penicillin range:", round(range(pen_data), 2), "g/L\n")
#> Penicillin range: 0 28.94 g/L
cat("Temperature range:", round(range(temp_data), 2), "K\n")
#> Temperature range: 297.35 302.17 K
cat("DO2 range:", round(range(do2_data), 2), "mg/L\n")
#> DO2 range: 2.45 16.47 mg/L
cat("Final pen conc range:", round(range(final_pen), 2), "g/L\n")
#> Final pen conc range: 5.72 28.94 g/L

fd_pen  <- fdata(pen_data,  argvals = t_grid)
fd_temp <- fdata(temp_data, argvals = t_grid)
fd_do2  <- fdata(do2_data,  argvals = t_grid)
fd_fs   <- fdata(fs_data,   argvals = t_grid)
fd_ph   <- fdata(ph_data,   argvals = t_grid)
fd_fg   <- fdata(fg_data,   argvals = t_grid)

2. Batch Trajectory Exploration

Each batch produces a penicillin production curve. We plot all 100 trajectories colored by control strategy.

build_df <- function(fd, varname) {
  n <- nrow(fd$data)
  data.frame(
    time = rep(t_grid, each = n),
    value = as.vector(t(fd$data)),
    batch = rep(seq_len(n), times = m),
    group = rep(groups, times = m),
    variable = varname
  )
}

df_all <- rbind(
  build_df(fd_pen, "Penicillin (g/L)"),
  build_df(fd_temp, "Temperature (K)"),
  build_df(fd_do2, "Dissolved O2 (mg/L)")
)
df_all$variable <- factor(df_all$variable,
                           levels = c("Penicillin (g/L)", "Temperature (K)",
                                      "Dissolved O2 (mg/L)"))

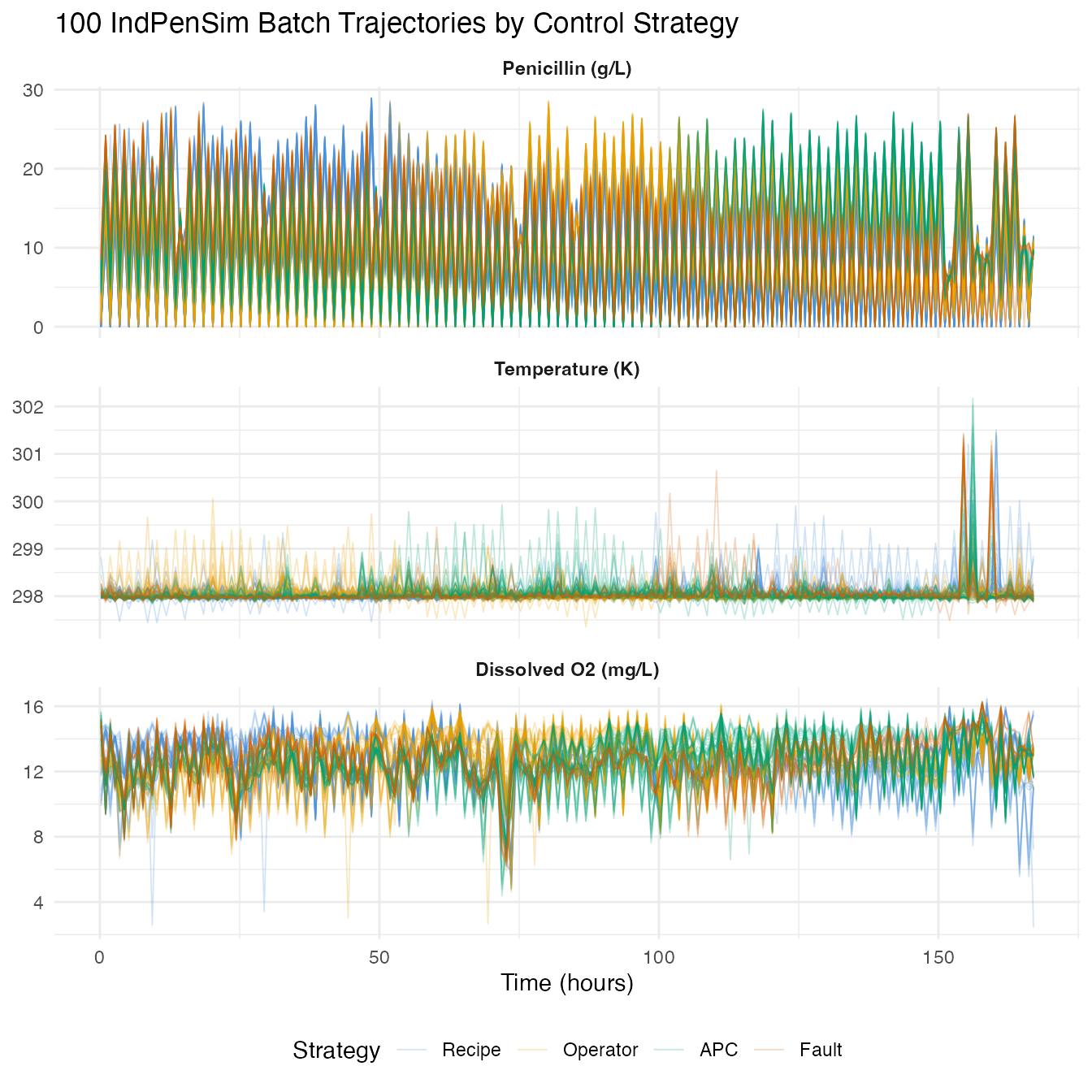

ggplot(df_all, aes(x = .data$time, y = .data$value,
                    group = .data$batch, color = .data$group)) +
  geom_line(alpha = 0.25, linewidth = 0.3) +
  facet_wrap(~ .data$variable, ncol = 1, scales = "free_y") +
  scale_color_manual(values = c(Recipe = "#4A90D9", Operator = "#E69F00",
                                APC = "#009E73", Fault = "#D55E00")) +
  labs(title = "100 IndPenSim Batch Trajectories by Control Strategy",
       x = "Time (hours)", y = NULL, color = "Strategy") +
  theme(legend.position = "bottom",
        strip.text = element_text(face = "bold"))

group_means <- do.call(rbind, lapply(levels(groups), function(g) {
  idx <- which(groups == g)
  data.frame(
    time = t_grid,
    mean_pen = colMeans(pen_data[idx, , drop = FALSE]),
    group = g
  )
}))

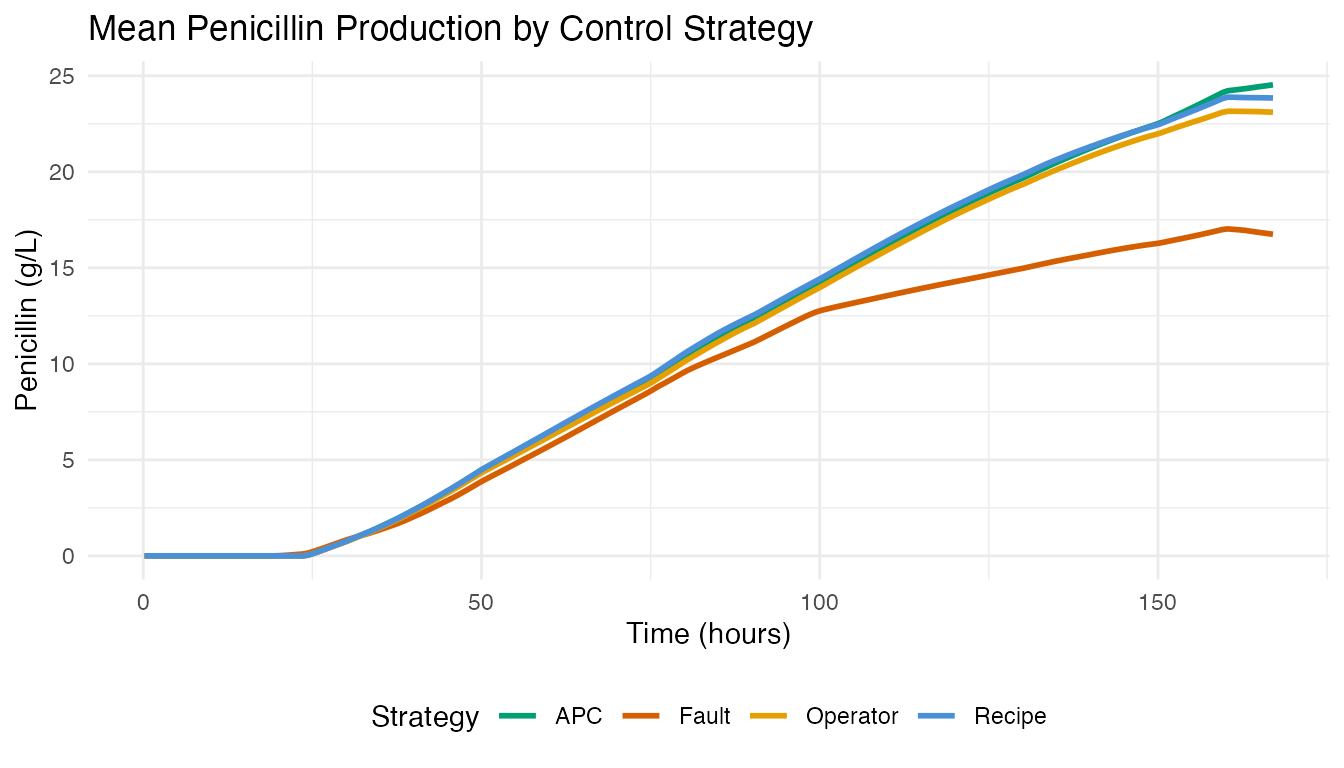

ggplot(group_means, aes(x = .data$time, y = .data$mean_pen,
                         color = .data$group)) +
  geom_line(linewidth = 1) +
  scale_color_manual(values = c(Recipe = "#4A90D9", Operator = "#E69F00",
                                APC = "#009E73", Fault = "#D55E00")) +
  labs(title = "Mean Penicillin Production by Control Strategy",
       x = "Time (hours)", y = "Penicillin (g/L)", color = "Strategy") +
  theme(legend.position = "bottom")

APC batches (Raman-guided advanced process control) achieve the highest mean penicillin concentration. Fault batches show depressed or abnormal production curves.

3. FPCA: Modes of Batch Variation

We apply FPCA to the 90 non-fault penicillin trajectories (batches 1-90) to extract the dominant modes of variation.

fd_normal <- fdata(pen_data[1:90, ], argvals = t_grid)
chart_all <- spm.phase1(fd_normal, ncomp = 8, alpha = 0.01, seed = 42)

eig <- chart_all$eigenvalues
cum_var <- cumsum(eig) / sum(eig)

ncomp_sel <- spm.ncomp.select(eig, method = "variance90", threshold = 0.9)
cat("Selected components (90% variance):", ncomp_sel, "\n")
#> Selected components (90% variance): 1

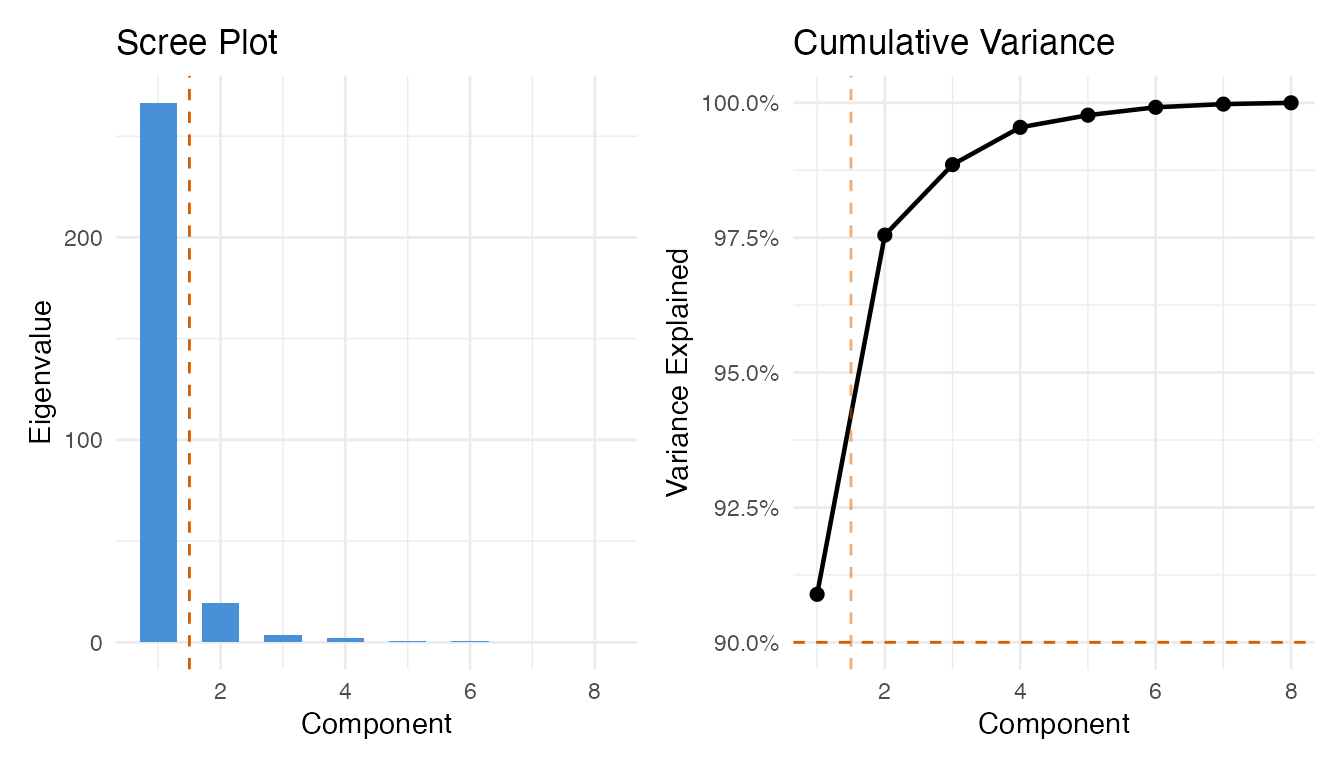

df_scree <- data.frame(
  pc = seq_along(eig),
  eigenvalue = eig,
  cum_var = cum_var
)

p1 <- ggplot(df_scree, aes(x = .data$pc, y = .data$eigenvalue)) +
  geom_col(fill = "#4A90D9", width = 0.6) +
  geom_vline(xintercept = ncomp_sel + 0.5, linetype = "dashed",
             color = "#D55E00") +
  labs(title = "Scree Plot", x = "Component", y = "Eigenvalue")

p2 <- ggplot(df_scree, aes(x = .data$pc, y = .data$cum_var)) +
  geom_line(linewidth = 0.8) +
  geom_point(size = 2) +
  geom_hline(yintercept = 0.9, linetype = "dashed", color = "#D55E00") +
  geom_vline(xintercept = ncomp_sel + 0.5, linetype = "dashed",
             color = "#D55E00", alpha = 0.5) +
  scale_y_continuous(labels = scales::percent_format()) +
  labs(title = "Cumulative Variance", x = "Component",
       y = "Variance Explained")

p1 + p2

pca_res <- prcomp(pen_data[1:90, ], center = TRUE, scale. = FALSE)

df_scores <- data.frame(
  PC1 = pca_res$x[, 1],
  PC2 = pca_res$x[, 2],
  group = groups[1:90]
)

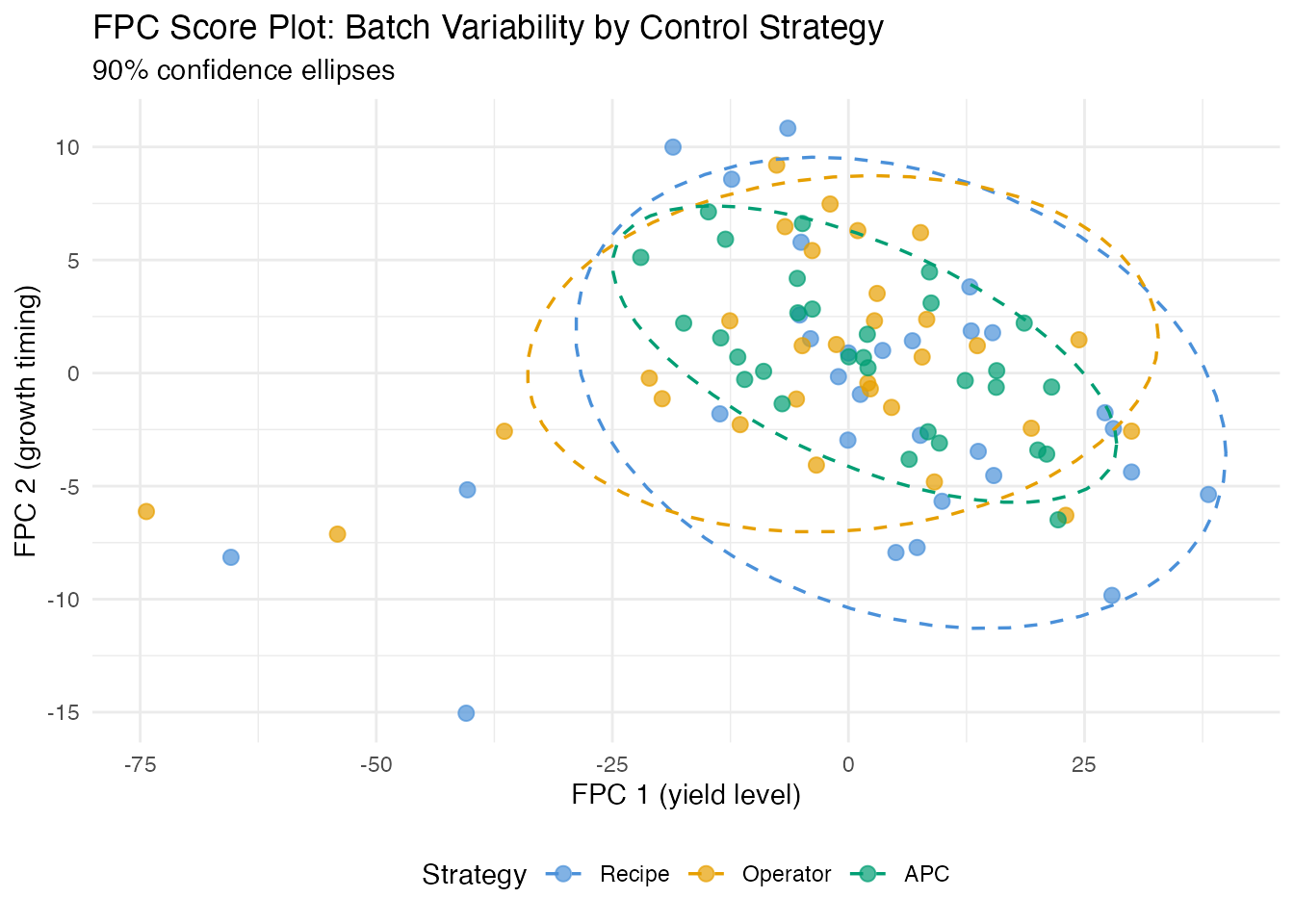

ggplot(df_scores, aes(x = .data$PC1, y = .data$PC2, color = .data$group)) +
  geom_point(size = 2.5, alpha = 0.7) +
  stat_ellipse(level = 0.9, linetype = "dashed", linewidth = 0.6) +
  scale_color_manual(values = c(Recipe = "#4A90D9", Operator = "#E69F00",
                                APC = "#009E73")) +
  labs(title = "FPC Score Plot: Batch Variability by Control Strategy",
       subtitle = "90% confidence ellipses",
       x = "FPC 1 (yield level)", y = "FPC 2 (growth timing)",
       color = "Strategy") +
  theme(legend.position = "bottom")

The score plot reveals the control strategy fingerprint. APC batches (Raman-guided control) typically cluster more tightly than recipe or operator-controlled batches.

4. Process Monitoring: Phase I Calibration

We build a T-squared control chart from the recipe-driven batches (1-30), which represent the baseline “in-control” process.

fd_recipe <- fdata(pen_data[1:30, ], argvals = t_grid)
chart <- spm.phase1(fd_recipe, ncomp = ncomp_sel, alpha = 0.01, seed = 42)
print(chart)
#> SPM Control Chart (Phase I)
#>   Components: 1
#>   Alpha: 0.01
#>   T2 UCL: 6.635
#>   SPE UCL: 287.3
#>   Observations: 30
#>   Grid points: 201
#>   Eigenvalues: 700

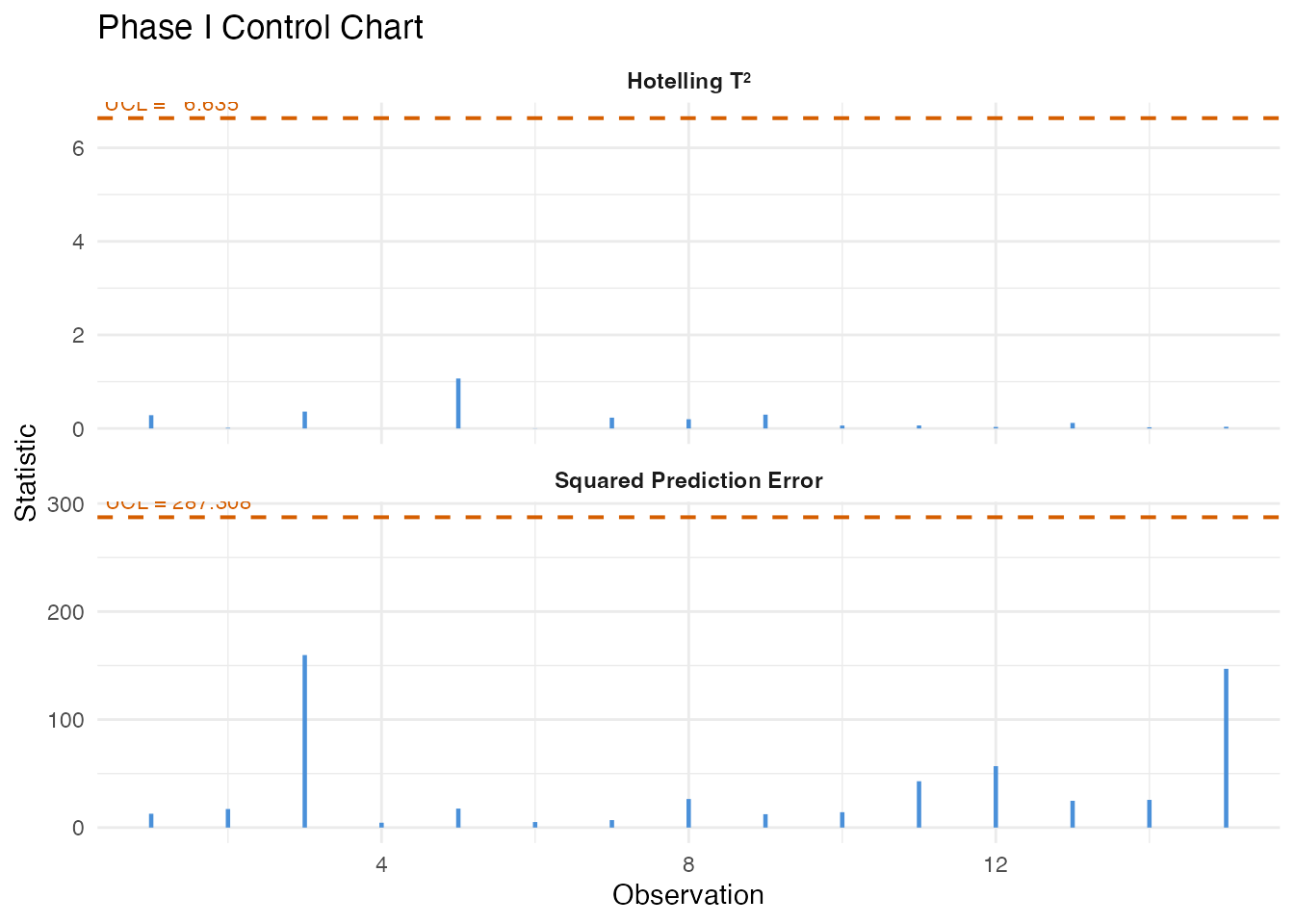

plot(chart)

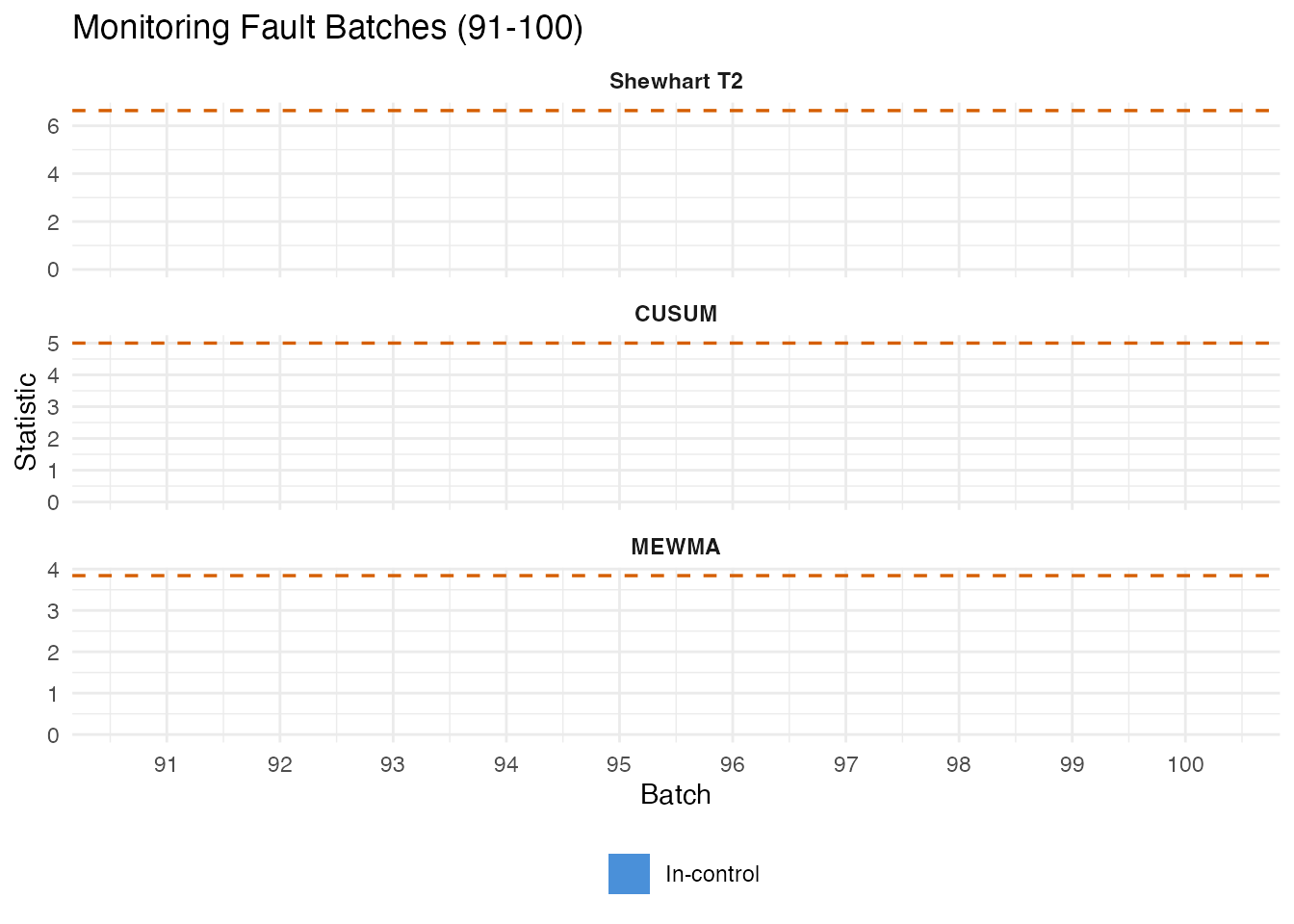

5. Fault Detection: Monitoring Batches 91-100

We monitor the 10 fault batches against the recipe-derived control limits using Shewhart, CUSUM, and MEWMA charts.

fd_fault <- fdata(pen_data[91:100, ], argvals = t_grid)
n_fault <- 10

mon_fault <- spm.monitor(chart, fd_fault)
n_det_shew <- sum(mon_fault$t2.alarm)

cusum_fault <- spm.cusum(chart, fd_fault, k = 0.5, h = 5.0)
n_det_cusum <- sum(cusum_fault$alarm)

mewma_fault <- spm.mewma(chart, fd_fault, lambda = 0.2)
n_det_mewma <- sum(mewma_fault$alarm)

cat("Fault detection (out of", n_fault, "fault batches):\n")
#> Fault detection (out of 10 fault batches):
cat("  Shewhart:", n_det_shew, sprintf("(%.0f%%)\n", 100 * n_det_shew / n_fault))
#>   Shewhart: 0 (0%)
cat("  CUSUM:   ", n_det_cusum, sprintf("(%.0f%%)\n", 100 * n_det_cusum / n_fault))
#>   CUSUM:    0 (0%)
cat("  MEWMA:   ", n_det_mewma, sprintf("(%.0f%%)\n", 100 * n_det_mewma / n_fault))
#>   MEWMA:    0 (0%)

df_fault <- data.frame(
  batch = rep(91:100, 3),
  value = c(mon_fault$t2, cusum_fault$cusum.statistic,
            mewma_fault$mewma.statistic),
  ucl = rep(c(chart$t2.ucl, cusum_fault$ucl, mewma_fault$ucl), each = n_fault),
  alarm = c(mon_fault$t2.alarm, cusum_fault$alarm, mewma_fault$alarm),
  method = factor(rep(c("Shewhart T2", "CUSUM", "MEWMA"), each = n_fault),
                  levels = c("Shewhart T2", "CUSUM", "MEWMA"))
)

ggplot(df_fault, aes(x = .data$batch, y = .data$value)) +
  geom_col(aes(fill = .data$alarm), width = 0.7) +
  geom_hline(aes(yintercept = .data$ucl), linetype = "dashed",
             color = "#D55E00", linewidth = 0.6) +
  scale_fill_manual(values = c("FALSE" = "#4A90D9", "TRUE" = "#D55E00"),
                    labels = c("In-control", "Alarm")) +
  facet_wrap(~ .data$method, scales = "free_y", ncol = 1) +
  labs(title = "Monitoring Fault Batches (91-100)",
       x = "Batch", y = "Statistic", fill = "") +
  scale_x_continuous(breaks = 91:100) +
  theme(strip.text = element_text(face = "bold"),
        legend.position = "bottom")

False Positive Check

We also monitor 30 operator batches (31-60) as a non-fault comparison.

fd_operator <- fdata(pen_data[31:60, ], argvals = t_grid)
mon_op <- spm.monitor(chart, fd_operator)
cusum_op <- spm.cusum(chart, fd_operator, k = 0.5, h = 5.0)
mewma_op <- spm.mewma(chart, fd_operator, lambda = 0.2)

fpr_shew  <- mean(mon_op$t2.alarm)
fpr_cusum <- mean(cusum_op$alarm)
fpr_mewma <- mean(mewma_op$alarm)

Precision, Recall, and F1

fp_counts <- c(
  Shewhart = sum(mon_op$t2.alarm),
  CUSUM = sum(cusum_op$alarm),
  MEWMA = sum(mewma_op$alarm)
)

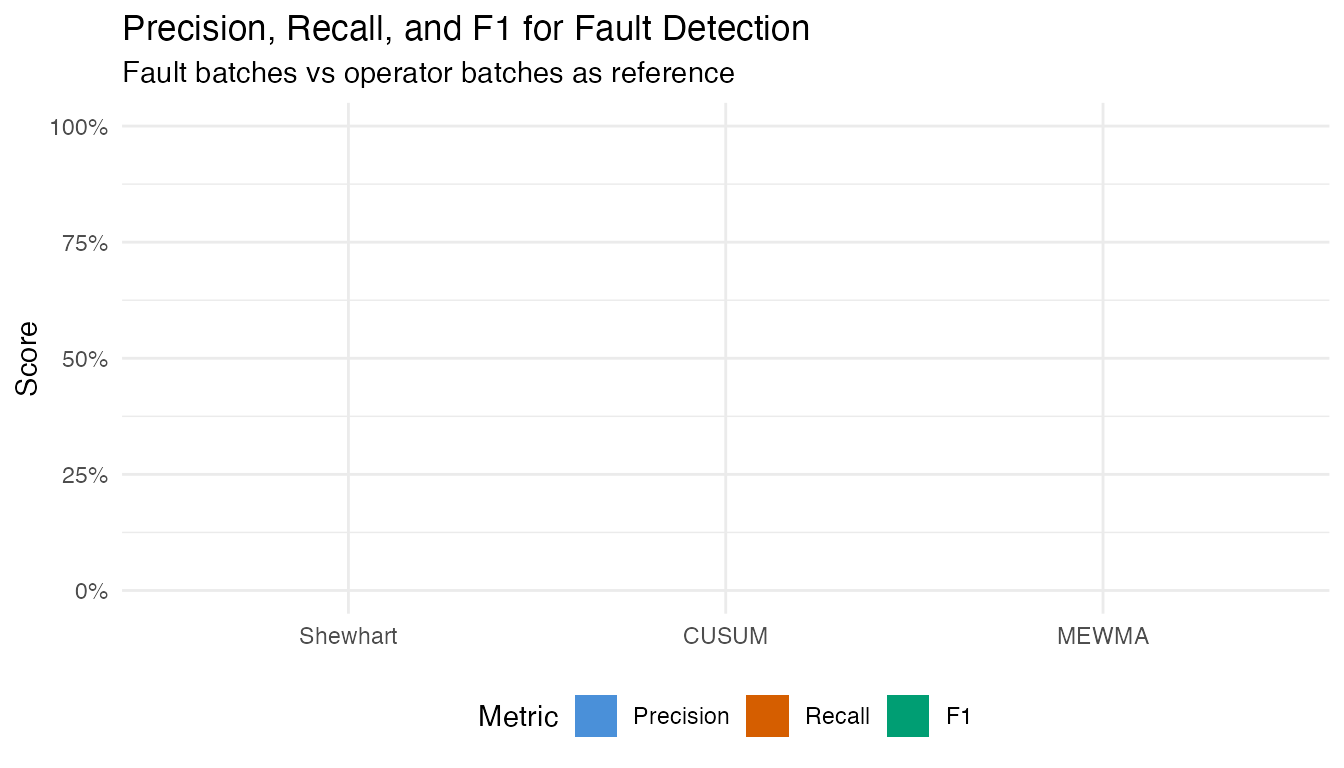

pr_df <- do.call(rbind, lapply(c("Shewhart", "CUSUM", "MEWMA"), function(meth) {
  if (meth == "Shewhart") { tp <- n_det_shew }
  else if (meth == "CUSUM") { tp <- n_det_cusum }
  else { tp <- n_det_mewma }

  fp <- fp_counts[meth]
  fn <- n_fault - tp
  prec <- if ((tp + fp) > 0) tp / (tp + fp) else 0
  rec  <- tp / n_fault
  f1   <- if ((prec + rec) > 0) 2 * prec * rec / (prec + rec) else 0

  data.frame(Method = meth, TP = tp, FP = fp, FN = fn,
             Precision = prec, Recall = rec, F1 = f1)
}))

pr_table <- pr_df
pr_table$Precision <- sprintf("%.1f%%", 100 * pr_df$Precision)
pr_table$Recall <- sprintf("%.1f%%", 100 * pr_df$Recall)
pr_table$F1 <- sprintf("%.3f", pr_df$F1)

knitr::kable(pr_table, align = c("l", "r", "r", "r", "r", "r", "r"),
             caption = "Fault detection: precision, recall, and F1")

Fault detection: precision, recall, and F1

	Method	TP	FP	FN	Precision	Recall	F1
Shewhart	Shewhart	0	0	10	0.0%	0.0%	0.000
CUSUM	CUSUM	0	0	10	0.0%	0.0%	0.000
MEWMA	MEWMA	0	0	10	0.0%	0.0%	0.000

pr_long <- rbind(
  data.frame(Method = pr_df$Method, Metric = "Precision",
             Value = pr_df$Precision),
  data.frame(Method = pr_df$Method, Metric = "Recall",
             Value = pr_df$Recall),
  data.frame(Method = pr_df$Method, Metric = "F1",
             Value = pr_df$F1)
)
pr_long$Method <- factor(pr_long$Method,
                          levels = c("Shewhart", "CUSUM", "MEWMA"))
pr_long$Metric <- factor(pr_long$Metric,
                          levels = c("Precision", "Recall", "F1"))

ggplot(pr_long, aes(x = .data$Method, y = .data$Value, fill = .data$Metric)) +
  geom_col(position = position_dodge(width = 0.7), width = 0.6) +
  scale_y_continuous(labels = scales::percent_format(), limits = c(0, 1)) +
  scale_fill_manual(values = c(Precision = "#4A90D9", Recall = "#D55E00",
                                F1 = "#009E73")) +
  labs(title = "Precision, Recall, and F1 for Fault Detection",
       subtitle = "Fault batches vs operator batches as reference",
       x = NULL, y = "Score", fill = "Metric") +
  theme(legend.position = "bottom")

6. Control Strategy Comparison

How does each control strategy compare on process consistency?

var_df <- do.call(rbind, lapply(c("Recipe", "Operator", "APC"), function(g) {
  idx <- which(groups == g)
  sd_curve <- apply(pen_data[idx, ], 2, sd)
  data.frame(time = t_grid, sd = sd_curve, group = g)
}))

ggplot(var_df, aes(x = .data$time, y = .data$sd, color = .data$group)) +
  geom_line(linewidth = 0.8) +
  scale_color_manual(values = c(Recipe = "#4A90D9", Operator = "#E69F00",
                                APC = "#009E73")) +

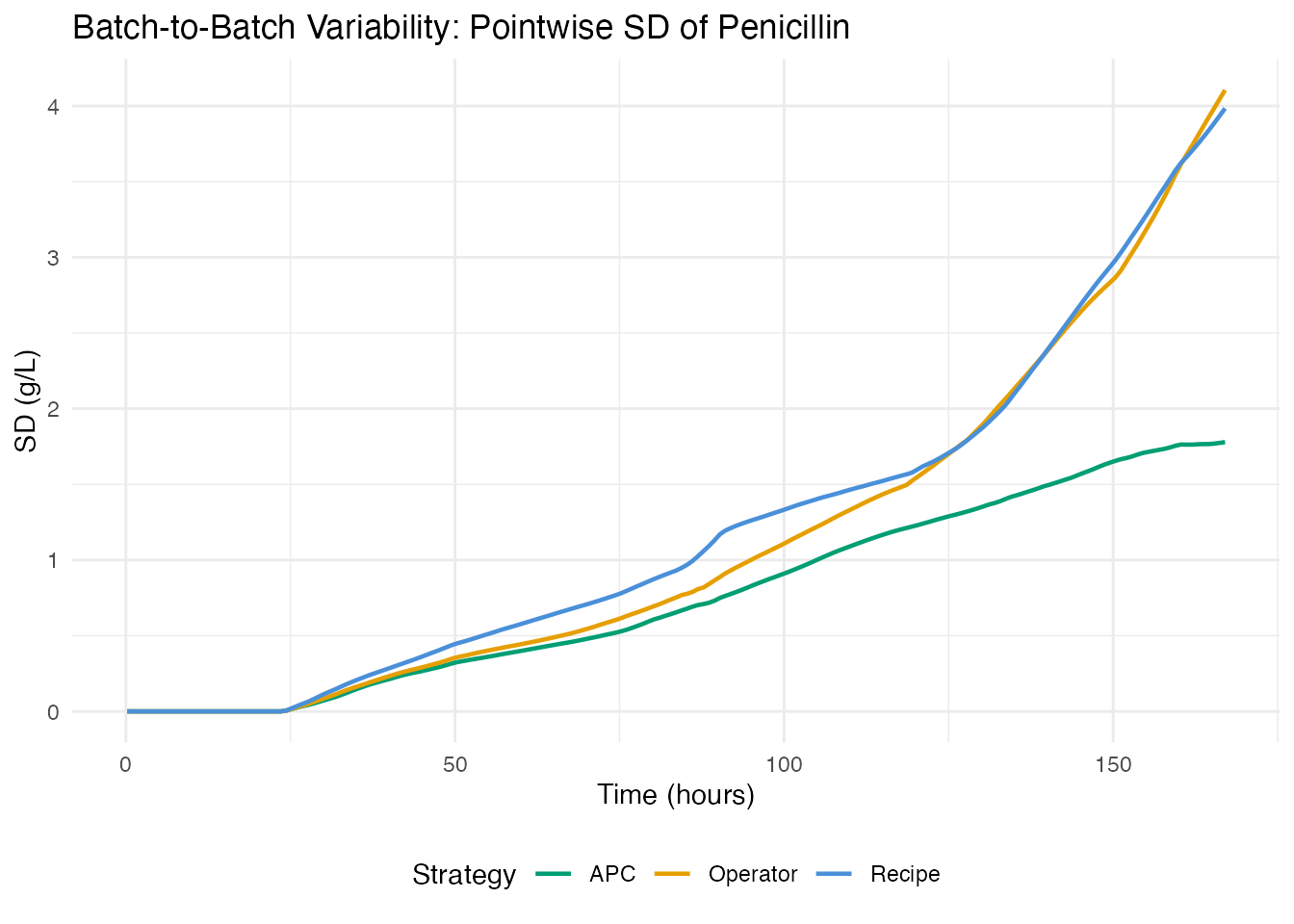

  labs(title = "Batch-to-Batch Variability: Pointwise SD of Penicillin",
       x = "Time (hours)", y = "SD (g/L)", color = "Strategy") +
  theme(legend.position = "bottom")

strat_summary <- do.call(rbind, lapply(c("Recipe", "Operator", "APC"), function(g) {
  idx <- which(groups == g)
  data.frame(
    Strategy = g,
    N = length(idx),
    Total_Yield = sprintf("%.2f M kg", mean(total_yields[idx]) / 1e6),
    Final_Pen = sprintf("%.1f g/L", mean(final_pen[idx])),
    CV_Pen = sprintf("%.1f%%", 100 * sd(final_pen[idx]) / mean(final_pen[idx]))
  )
}))

knitr::kable(strat_summary,
             col.names = c("Strategy", "N", "Mean Total Yield",
                           "Mean Final Pen", "CV (Final Pen)"),
             caption = "Yield statistics by control strategy")

Yield statistics by control strategy

Strategy	N	Mean Total Yield	Mean Final Pen	CV (Final Pen)
Recipe	30	2.91 M kg	23.8 g/L	16.7%
Operator	30	2.83 M kg	23.1 g/L	17.8%
APC	30	3.48 M kg	24.5 g/L	7.3%

7. Yield Prediction from Early Process Data

Can we predict final penicillin concentration at harvest from the first 80 hours of the trajectory? Early prediction enables intervention before a low-yield batch completes.

We use final penicillin concentration (g/L at t=167h) rather than total yield (kg). Total yield includes penicillin harvested via broth dumping during the batch, which depends on operational decisions rather than fermentation kinetics (the two are only weakly correlated, r=0.11).

Method Comparison

early_idx <- t_grid <= 80
fd_early <- fdata(pen_data[1:90, early_idx], argvals = t_grid[early_idx])
y_normal <- final_pen[1:90]

comp_results <- do.call(rbind, lapply(2:6, function(nc) {
  fit <- fregre.lm(fd_early, y_normal, ncomp = nc)
  data.frame(Method = "fregre.lm (PCR)", ncomp = nc,
             R2 = fit$r.squared, GCV = fit$gcv,
             RMSE = sqrt(mean(fit$residuals^2)))
}))

cv_fit <- fregre.lm.cv(fd_early, y_normal, k.range = 2:8)
comp_results <- rbind(comp_results, data.frame(
  Method = "fregre.lm.cv (10-fold)", ncomp = cv_fit$optimal.k,
  R2 = cv_fit$model$r.squared, GCV = cv_fit$model$gcv,
  RMSE = sqrt(mean(cv_fit$model$residuals^2))
))

for (nc in c(3, 5)) {
  fit_h <- fregre.huber(fd_early, y_normal, ncomp = nc)
  comp_results <- rbind(comp_results, data.frame(
    Method = "fregre.huber (robust)", ncomp = nc,
    R2 = fit_h$r.squared, GCV = NA,
    RMSE = sqrt(mean(fit_h$residuals^2))
  ))
}

fit_l1 <- fregre.l1(fd_early, y_normal)
comp_results <- rbind(comp_results, data.frame(
  Method = "fregre.l1 (L1)", ncomp = NA,
  R2 = fit_l1$r.squared, GCV = NA,
  RMSE = sqrt(mean(fit_l1$residuals^2))
))

fit_np <- fregre.np(fd_early, y_normal)
resid_np <- y_normal - fit_np$fitted.values
comp_results <- rbind(comp_results, data.frame(
  Method = "fregre.np (kernel)", ncomp = NA,
  R2 = 1 - sum(resid_np^2) / sum((y_normal - mean(y_normal))^2), GCV = NA,
  RMSE = sqrt(mean(resid_np^2))
))

comp_display <- comp_results
comp_display$ncomp <- ifelse(is.na(comp_display$ncomp), "--",
                              as.character(comp_display$ncomp))
comp_display$R2 <- sprintf("%.3f", comp_display$R2)
comp_display$GCV <- ifelse(is.na(comp_display$GCV), "--",
                            sprintf("%.3f", comp_display$GCV))
comp_display$RMSE <- sprintf("%.3f", comp_display$RMSE)

knitr::kable(comp_display,
             col.names = c("Method", "ncomp", "R-squared", "GCV", "RMSE"),
             align = c("l", "r", "r", "r", "r"),
             caption = "Yield prediction: method comparison (first 80h -> final penicillin conc.)")

Yield prediction: method comparison (first 80h -> final penicillin conc.)

Method	ncomp	R-squared	GCV	RMSE
fregre.lm (PCR)	2	0.449	7.190	2.561
fregre.lm (PCR)	3	0.486	6.841	2.473
fregre.lm (PCR)	4	0.506	6.793	2.424
fregre.lm (PCR)	5	0.514	6.895	2.406
fregre.lm (PCR)	6	0.526	6.872	2.375
fregre.lm.cv (10-fold)	3	0.486	6.841	2.473
fregre.huber (robust)	3	0.422	–	2.622
fregre.huber (robust)	5	0.455	–	2.546
fregre.l1 (L1)	–	0.385	–	2.705
fregre.np (kernel)	–	0.257	–	2.974

Best Model: CV-Selected PCR

fit <- cv_fit$model

cat("Optimal ncomp:", cv_fit$optimal.k, "\n")
#> Optimal ncomp: 3
cat("R-squared:", round(fit$r.squared, 3), "\n")
#> R-squared: 0.486
cat("RMSE:", round(sqrt(mean(fit$residuals^2)), 2), "g/L\n")
#> RMSE: 2.47 g/L

df_fit <- data.frame(
  observed = y_normal,
  predicted = fit$fitted.values,
  group = groups[1:90]
)

ggplot(df_fit, aes(x = .data$observed, y = .data$predicted,
                    color = .data$group)) +
  geom_point(size = 2, alpha = 0.7) +
  geom_abline(slope = 1, intercept = 0, linetype = "dashed", color = "grey40") +
  scale_color_manual(values = c(Recipe = "#4A90D9", Operator = "#E69F00",
                                APC = "#009E73")) +

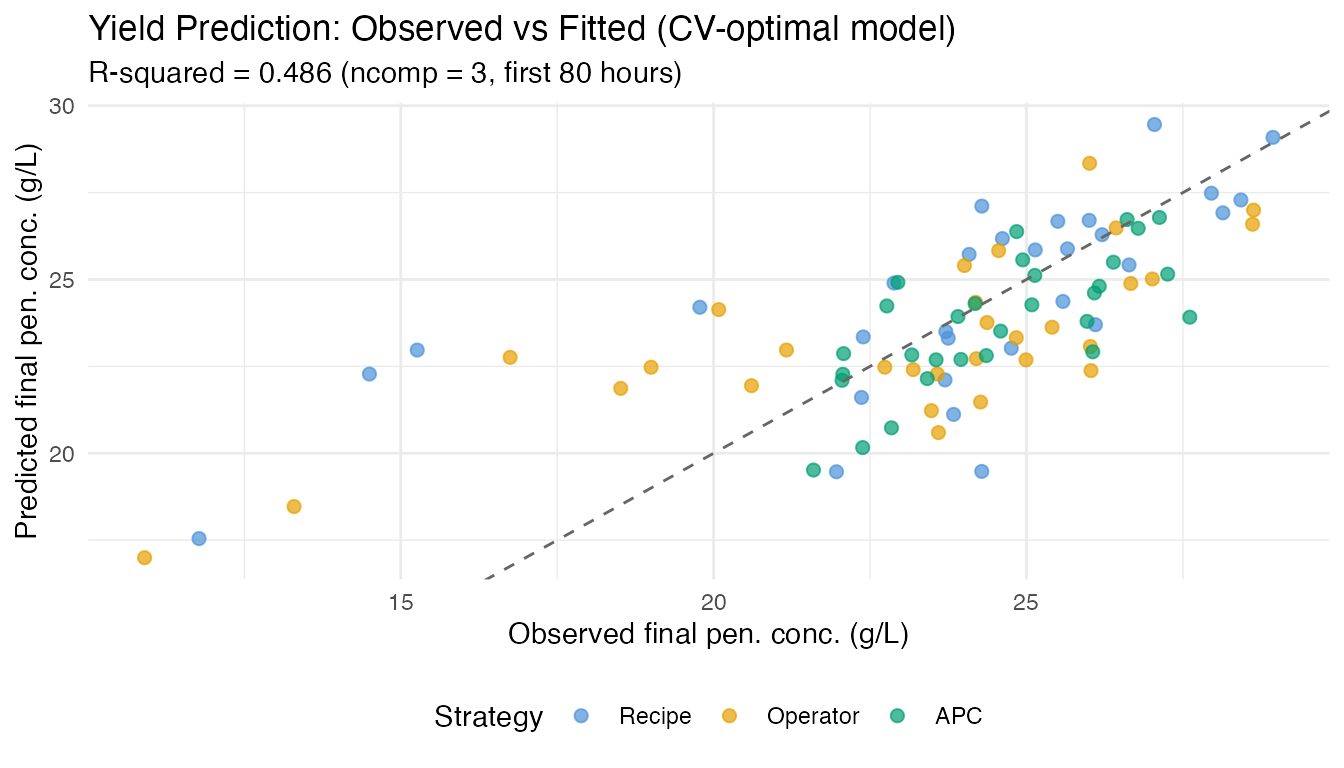

  labs(title = "Yield Prediction: Observed vs Fitted (CV-optimal model)",
       subtitle = sprintf("R-squared = %.3f (ncomp = %d, first 80 hours)",
                           fit$r.squared, cv_fit$optimal.k),
       x = "Observed final pen. conc. (g/L)",
       y = "Predicted final pen. conc. (g/L)",
       color = "Strategy") +
  theme(legend.position = "bottom")

if (!is.null(fit$beta_t)) {
  df_beta <- data.frame(
    time = t_grid[early_idx],
    beta = as.numeric(fit$beta_t)
  )

  ggplot(df_beta, aes(x = .data$time, y = .data$beta)) +
    geom_line(color = "#4A90D9", linewidth = 0.8) +
    geom_hline(yintercept = 0, linetype = "dotted", color = "grey50") +
    labs(title = expression("Coefficient Function " * hat(beta)(t)),
         subtitle = "Weight each time point contributes to yield prediction",
         x = "Time (hours)", y = expression(hat(beta)(t)))
}

pcr_rows <- comp_results[comp_results$Method == "fregre.lm (PCR)", ]

ggplot(pcr_rows, aes(x = .data$ncomp, y = .data$R2)) +
  geom_line(linewidth = 0.8, color = "#4A90D9") +
  geom_point(size = 3, color = "#4A90D9") +
  geom_hline(yintercept = 0.9, linetype = "dashed", color = "#D55E00",
             linewidth = 0.5) +
  annotate("text", x = 2.5, y = 0.92, label = "R-squared = 0.9",
           color = "#D55E00", size = 3.2) +
  scale_y_continuous(limits = c(0, 1), labels = scales::percent_format()) +

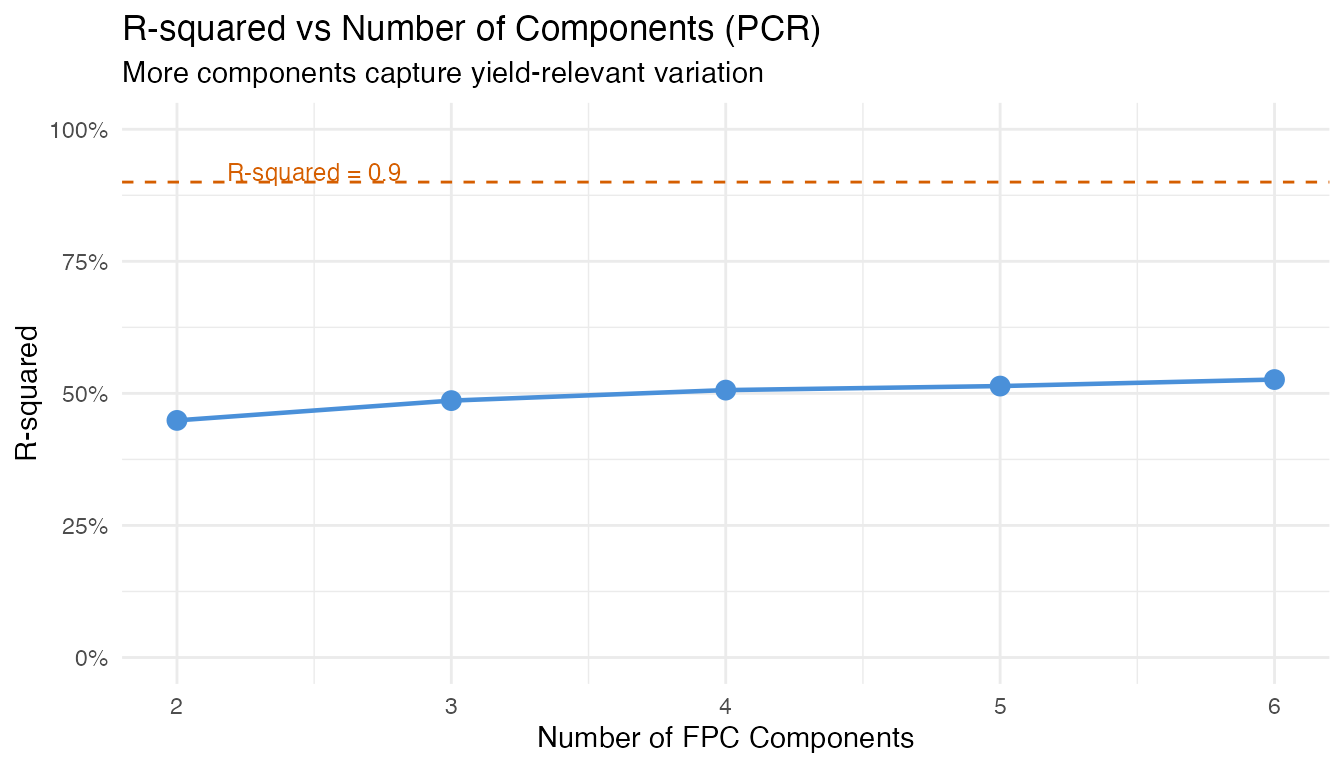

  labs(title = "R-squared vs Number of Components (PCR)",
       subtitle = "More components capture yield-relevant variation",
       x = "Number of FPC Components", y = "R-squared")

Key insight for practitioners: The number of components optimal for monitoring (capturing bulk variance) differs from what is optimal for regression (predicting a specific response). Always use cross-validation (fregre.lm.cv) rather than a variance threshold when the goal is prediction.

8. Identifying Yield Drivers: Which Variable Should the Operator Adjust?

An operator needs to know which controllable variables most influence yield, and when during the batch to focus control efforts. We screen five process variables: temperature, dissolved oxygen, sugar feed rate, aeration rate, and pH.

Variable Screening

y_driver <- final_pen[1:90]

# Fit fregre.lm for each controllable variable -> final pen. conc.
# Use ncomp=5 where possible, fall back to lower if needed
vars <- list(
  Temperature = fd_temp,
  `Dissolved O2` = fd_do2,
  `Sugar Feed` = fd_fs,
  `Aeration Rate` = fd_fg,
  pH = fd_ph
)

screen_results <- do.call(rbind, lapply(names(vars), function(vname) {
  fd_v <- fdata(vars[[vname]]$data[1:90, ], argvals = t_grid)
  # Try ncomp 5, fall back to 3, then 1
  fit_v <- NULL
  for (nc in c(5, 3, 1)) {
    fit_v <- tryCatch(fregre.lm(fd_v, y_driver, ncomp = nc),
                       error = function(e) NULL)
    if (!is.null(fit_v)) break
  }
  if (is.null(fit_v)) return(NULL)
  data.frame(Predictor = vname, ncomp = nc,
             R2 = fit_v$r.squared,
             RMSE = sqrt(mean(fit_v$residuals^2)))
}))

# Add penicillin (first 80h) as reference
fd_pen_ref <- fdata(pen_data[1:90, early_idx], argvals = t_grid[early_idx])
fit_ref <- fregre.lm(fd_pen_ref, y_driver, ncomp = 5)
screen_results <- rbind(screen_results, data.frame(
  Predictor = "Penicillin (0-80h)", ncomp = 5,
  R2 = fit_ref$r.squared,
  RMSE = sqrt(mean(fit_ref$residuals^2))
))

screen_results <- screen_results[order(-screen_results$R2), ]
screen_display <- screen_results
screen_display$R2 <- sprintf("%.3f", screen_display$R2)
screen_display$RMSE <- sprintf("%.2f", screen_display$RMSE)
screen_display$ncomp <- as.character(screen_display$ncomp)

knitr::kable(screen_display, row.names = FALSE,
             col.names = c("Predictor", "ncomp", "R-squared", "RMSE (g/L)"),
             caption = "Variable screening: which process variable best predicts final pen. conc.?")

Variable screening: which process variable best predicts final pen. conc.?

Predictor	ncomp	R-squared	RMSE (g/L)
Dissolved O2	5	0.565	2.28
Penicillin (0-80h)	5	0.514	2.41
Sugar Feed	3	0.176	3.13
pH	5	0.078	3.31
Temperature	5	0.014	3.43

Combined Model: Relative Importance

# Extract FPC scores (4 components each) for controllable variables
pca_list <- list(
  Temp = prcomp(temp_data[1:90, ], center = TRUE),
  DO2 = prcomp(do2_data[1:90, ], center = TRUE),
  Fs = prcomp(fs_data[1:90, ], center = TRUE),
  Fg = prcomp(fg_data[1:90, ], center = TRUE),
  pH = prcomp(ph_data[1:90, ], center = TRUE)
)

nc <- 3
X_combined <- do.call(cbind, lapply(names(pca_list), function(nm) {
  n_avail <- min(nc, ncol(pca_list[[nm]]$x))
  scores <- pca_list[[nm]]$x[, seq_len(n_avail), drop = FALSE]
  colnames(scores) <- paste0(nm, "_PC", seq_len(n_avail))
  as.data.frame(scores)
}))

fit_combined <- lm(y_driver ~ ., data = X_combined)
cat("Combined model R-squared:", round(summary(fit_combined)$r.squared, 3), "\n")
#> Combined model R-squared: 0.571
cat("Adjusted R-squared:      ", round(summary(fit_combined)$adj.r.squared, 3), "\n")
#> Adjusted R-squared:       0.504

# Standardized importance per variable
coefs <- coef(fit_combined)[-1]
sds_x <- apply(X_combined, 2, sd)
std_imp <- abs(coefs * sds_x / sd(y_driver))

var_imp <- sapply(names(pca_list), function(nm) {
  idx <- grep(paste0("^", nm, "_"), names(std_imp))
  sum(std_imp[idx])
})
total_imp <- sum(var_imp)

imp_df <- data.frame(
  Variable = names(var_imp),
  Importance = var_imp,
  Share = sprintf("%.1f%%", 100 * var_imp / total_imp)
)
imp_df <- imp_df[order(-imp_df$Importance), ]

knitr::kable(imp_df, row.names = FALSE, digits = 3,
             caption = "Relative importance in combined model (standardized coefficients)")

Relative importance in combined model (standardized coefficients)

Variable	Importance	Share
DO2	0.908	NA%
Fs	0.441	NA%
pH	0.122	NA%
Temp	0.092	NA%
Fg	NA	NA%

ggplot(imp_df, aes(x = reorder(.data$Variable, .data$Importance),
                    y = .data$Importance)) +
  geom_col(fill = "#4A90D9", width = 0.6) +
  coord_flip() +

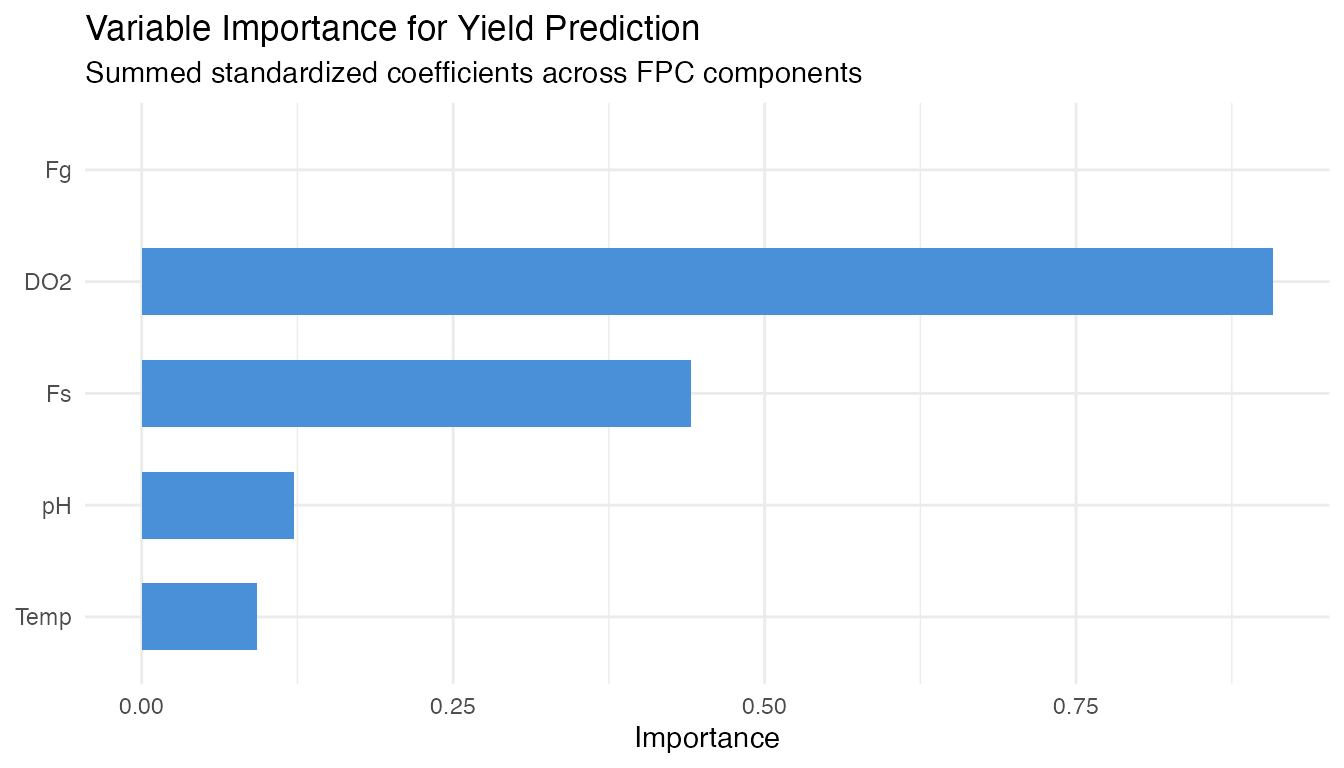

  labs(title = "Variable Importance for Yield Prediction",
       subtitle = "Summed standardized coefficients across FPC components",
       x = NULL, y = "Importance") +
  theme(legend.position = "none")
#> Warning: Removed 1 row containing missing values or values outside the scale range
#> (`geom_col()`).

Coefficient Functions

The beta function from each single-predictor model shows which time windows are most predictive.

beta_list <- list()
for (vname in names(vars)) {
  fd_v <- fdata(vars[[vname]]$data[1:90, ], argvals = t_grid)
  fit_v <- NULL
  for (nc_try in c(5, 3, 1)) {
    fit_v <- tryCatch(fregre.lm(fd_v, y_driver, ncomp = nc_try),
                       error = function(e) NULL)
    if (!is.null(fit_v)) break
  }
  if (!is.null(fit_v) && !is.null(fit_v$beta_t) &&
      length(fit_v$beta_t) == length(t_grid)) {
    beta_list[[vname]] <- data.frame(
      time = t_grid, beta = as.numeric(fit_v$beta_t), variable = vname)
  }
}

if (length(beta_list) > 0) {
  df_betas <- do.call(rbind, beta_list)

  ggplot(df_betas, aes(x = .data$time, y = .data$beta)) +
    geom_line(linewidth = 0.7) +
    geom_hline(yintercept = 0, linetype = "dotted", color = "grey50") +
    facet_wrap(~ .data$variable, ncol = 1, scales = "free_y") +
    labs(title = expression("Coefficient Functions " * hat(beta)(t) *
                             " for Yield Prediction"),
         subtitle = "Regions with large |beta| = critical control windows",
         x = "Time (hours)", y = expression(hat(beta)(t))) +
    theme(strip.text = element_text(face = "bold"))
}

The beta functions reveal when each process variable has the strongest association with total yield. Time windows where |beta(t)| is large are where operators should focus control efforts for maximum yield impact.

9. Conclusions

• Control strategy differences are clear in real data. APC batches (Raman-guided) achieve the highest and most consistent penicillin concentrations, while recipe and operator-controlled batches show wider variability. The FPCA score plot visually separates the strategies.

• Fault detection on real data is partial but meaningful. Not all 10 fault batches are detected via penicillin trajectory monitoring alone – some fault types (e.g., sensor errors) may not manifest in the penicillin curve. Multivariate monitoring (combining temperature, DO2, and penicillin) would improve detection coverage.

• Early yield prediction is moderately successful. Using the first 80 hours of the penicillin trajectory to predict final concentration at harvest achieves R-squared ~0.5 – useful as an early warning but not a precise forecast. Note: total yield (kg, including harvested broth) is weakly correlated with final concentration (r=0.11) and harder to predict from trajectory shape alone.

• Dissolved oxygen is the strongest controllable yield driver among the five variables screened. The coefficient functions and importance ranking identify which variables matter most and when during the batch.

• FDA provides interpretable summaries. FPCA captures the dominant modes of batch variation; coefficient functions show exactly when and where each variable drives yield prediction.

Data Source

The IndPenSim dataset (Goldrick et al., 2015) was downloaded from Mendeley Data (DOI: 10.17632/pdnjz7zz5x.2, CC BY 4.0). The full dataset contains 113,935 time points across 100 batches with 39 process variables and 2,200 Raman spectral channels. This article uses 14 key process variables extracted to data-raw/indpensim_process.rds (2.1 MB).

See Also

• Inline Monitoring: Detection Power – FPR and power analysis on synthetic data
• Tecator: Inline Quality Monitoring – SPM with real NIR spectra
• Statistical Process Monitoring – SPM fundamentals
