This is the starting point for a four-article series analyzing 178 wines (3 cultivars, 13 chemicals) with Andrews curves and functional data analysis.

Article	What It Does	Outcome
Why Andrews Curves? (this article)	Transform 13 chemicals into curves; verify distance preservation	Each wine becomes a visual fingerprint; $L^2$ distances equal $\sqrt{\pi} \times$ Euclidean — nothing lost
Outlier Detection	Depth, outliergram, MS-plot	9 anomalies classified by type — mislabel, soil anomaly, or concentration — with corrective actions
Clustering & Variable Importance	K-means, fuzzy c-means, permutation test, FPCA	Cultivar recovery at 96% accuracy; top 5 chemicals identified for cost reduction
Quality Control	Functional boxplots, depth rankings, tolerance bands	Monitoring system that checks new batches against a validated specification in one chart

The Problem with Tables

A quality-control analyst reviews 178 wines, each tested for 13 chemical properties — that’s 2,314 numbers. The questions are simple: Any anomalous wines? Do the three cultivars (Barolo, Grignolino, Barbera) look chemically distinct? Which chemicals matter most?

The business needs are concrete:

Detect production anomalies before a defective batch ships
Validate cultivar identity for denomination-of-origin certification
Reduce testing costs by identifying redundant assays
Establish ongoing monitoring against a validated reference profile

Standard practice uses separate tools for each (spreadsheet, MANOVA, PCA, per-variable control charts), each with its own distance metric and assumptions. Nothing connects them.

The alternative: transform all 13 chemicals into Andrews curves and apply a unified pipeline of functional data analysis methods. Every step operates on the same fdata object with the same $L^2$ distance semantics.

# UCI Wine dataset: 178 wines, 3 cultivars, 13 chemical measurements
wine_url <- "https://archive.ics.uci.edu/ml/machine-learning-databases/wine/wine.data"
col_names <- c("Cultivar", "Alcohol", "MalicAcid", "Ash", "Alkalinity",
               "Magnesium", "Phenols", "Flavanoids", "NonflavPhenols",
               "Proanthocyanins", "ColorIntensity", "Hue",
               "OD280_OD315", "Proline")
wine <- read.csv(wine_url, header = FALSE, col.names = col_names)

# Use real cultivar names
cultivar <- factor(wine$Cultivar,
                   levels = 1:3,
                   labels = c("Barolo", "Grignolino", "Barbera"))

# Standardize the 13 chemical variables
X <- scale(as.matrix(wine[, -1]))
chem_names <- colnames(wine)[-1]

cat(nrow(wine), "wines,", ncol(X), "chemicals,",
    nlevels(cultivar), "cultivars\n")
#> 178 wines, 13 chemicals, 3 cultivars


df_box <- data.frame(X) |>
  mutate(Cultivar = cultivar) |>
  tidyr::pivot_longer(-Cultivar, names_to = "Chemical", values_to = "Value")

ggplot(df_box, aes(x = Cultivar, y = Value, fill = Cultivar)) +
  geom_boxplot(alpha = 0.7, outlier.size = 0.8) +
  facet_wrap(~ Chemical, scales = "free_y", ncol = 4) +
  scale_fill_manual(values = c("Barolo" = "#8B0000",
                                "Grignolino" = "#DAA520",
                                "Barbera" = "#2E8B57")) +
  labs(x = NULL, y = "Standardized Value") +
  theme(legend.position = "bottom",
        strip.text = element_text(size = 9))

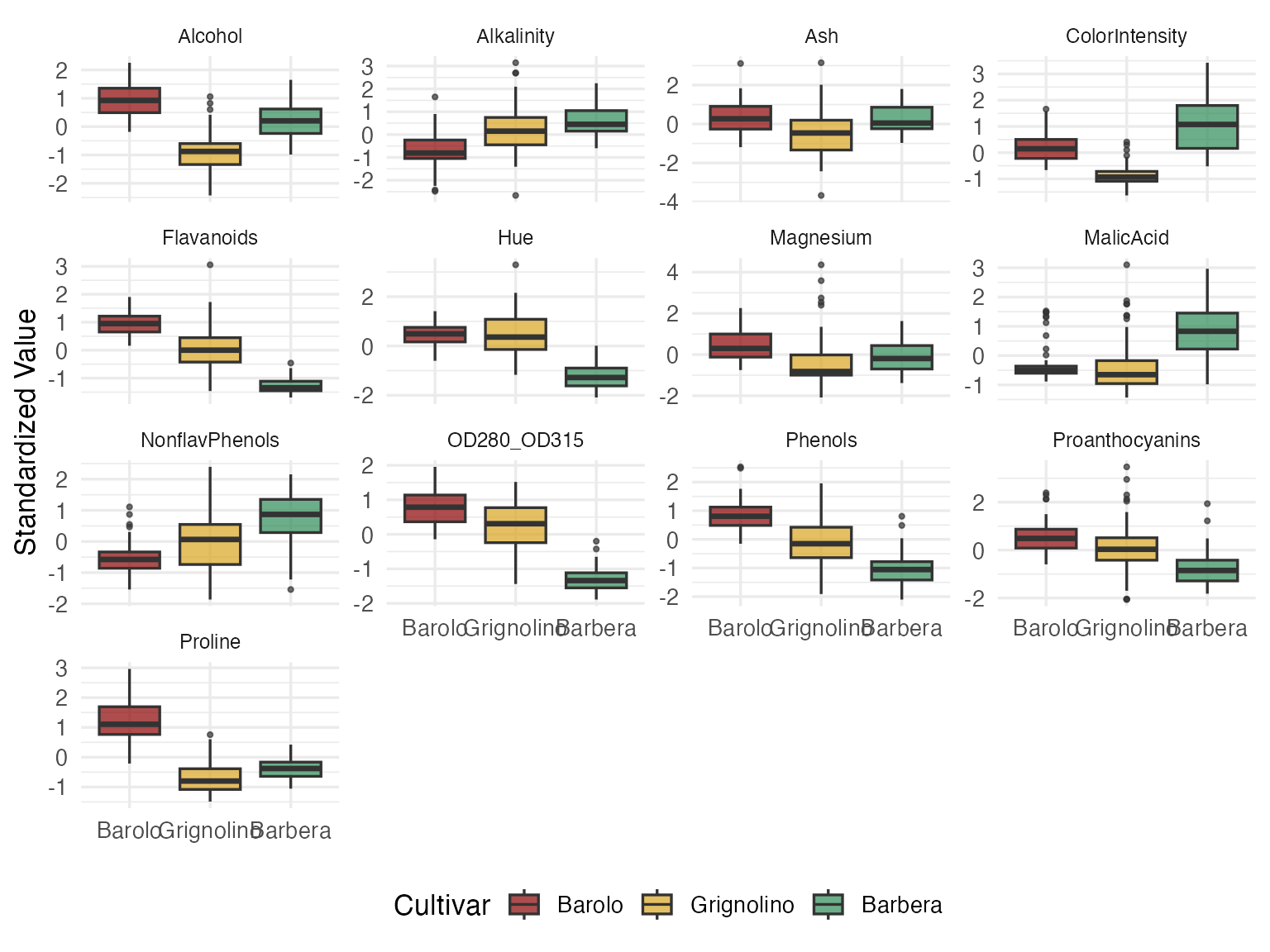

Some variables (Flavanoids, Proline, Color Intensity) clearly separate cultivars. Others (Ash, Magnesium) overlap heavily. But you can’t see a wine here — you see 13 disconnected box-and-whisker slices. Every decision about blending, pricing, or fraud detection requires a holistic view of each wine’s chemical fingerprint. That’s where Andrews curves come in.

Turning Rows into Curves

The Andrews transformation (Andrews, 1972) maps each $p$ -dimensional observation $\mathbf{x} = (x_1, \ldots, x_p)$ to a curve on $[-\pi, \pi]$ using a Fourier expansion:

$f_{\mathbf{x}}(t) = \frac{x_1}{\sqrt{2}} + x_2\sin(t) + x_3\cos(t) + x_4\sin(2t) + x_5\cos(2t) + \cdots$

The key guarantee: $L^2$ distance between curves equals $\sqrt{\pi}$ times the Euclidean distance between the original vectors. Nothing is lost. Nothing is distorted.

fd_wine <- andrews_transform(X)
cat("Andrews curves:", nrow(fd_wine$data), "observations,",
    ncol(fd_wine$data), "grid points\n")
#> Andrews curves: 178 observations, 200 grid points


n <- nrow(fd_wine$data)
m <- ncol(fd_wine$data)
t_grid <- fd_wine$argvals

df_curves <- data.frame(
  t = rep(t_grid, n),
  value = as.vector(t(fd_wine$data)),
  curve = rep(1:n, each = m),
  Cultivar = rep(cultivar, each = m)
)

ggplot(df_curves, aes(x = t, y = value, group = curve, color = Cultivar)) +
  geom_line(alpha = 0.35, linewidth = 0.4) +
  scale_color_manual(values = c("Barolo" = "#8B0000",
                                 "Grignolino" = "#DAA520",
                                 "Barbera" = "#2E8B57")) +
  labs(title = "Andrews Curves of Wine Chemical Profiles",
       x = expression(t), y = expression(f[x](t))) +
  theme(legend.position = "bottom")

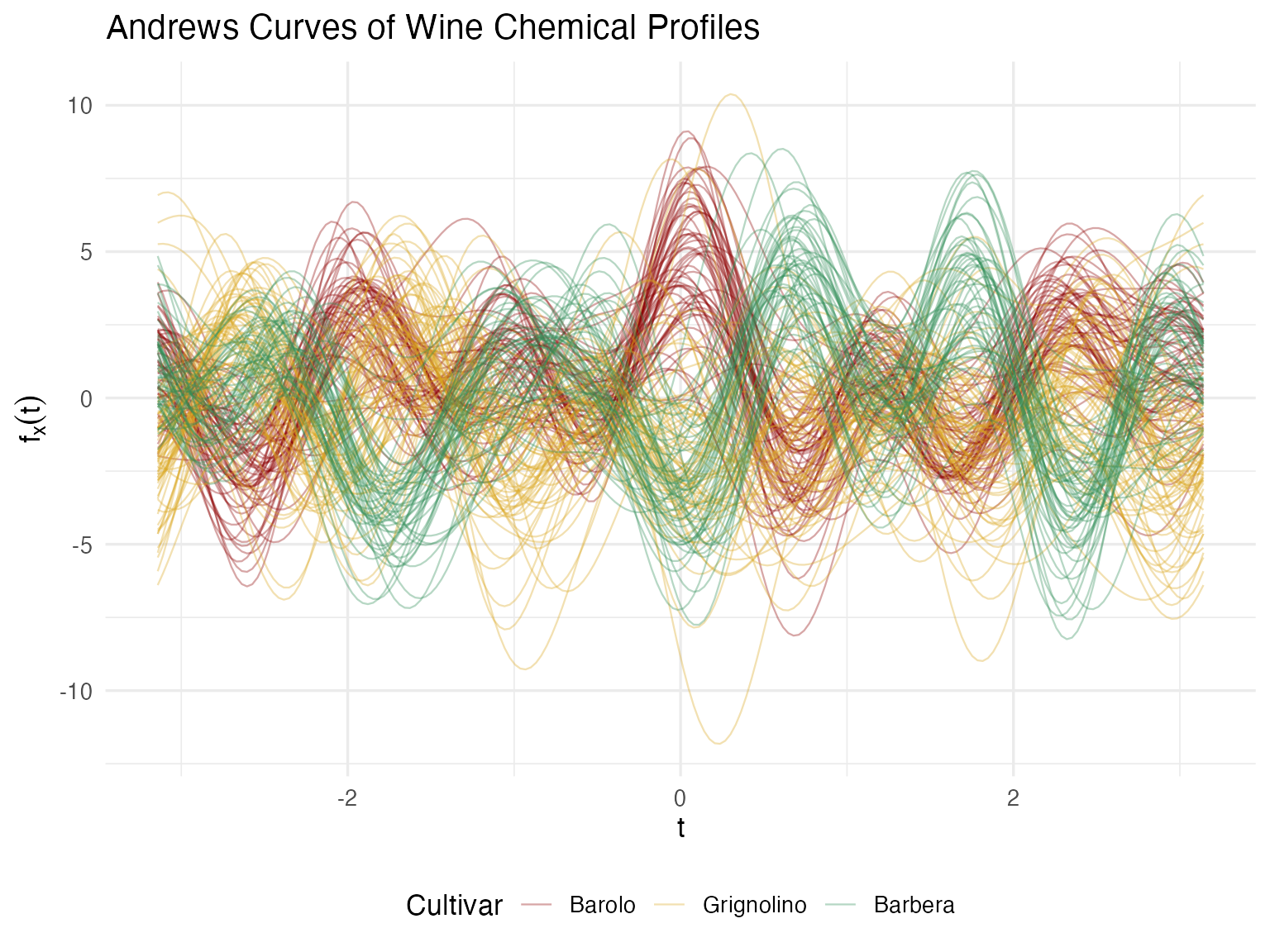

Now each wine has a signature — a single visual object that encodes all 13 measurements. A quality manager can glance at a curve and compare it to the cultivar’s typical profile. Wines that “look different” are immediately suspicious. This is the multivariate equivalent of a chromatography trace — one picture captures the whole chemical identity.

Proving the Bridge Works

Pretty pictures are nice, but for regulatory or audit contexts, we need a mathematical guarantee. The Andrews distance preservation theorem says:

$\|f_{\mathbf{x}} - f_{\mathbf{y}}\|_{L^2} = \sqrt{\pi} \cdot \|\mathbf{x} - \mathbf{y}\|_2$

Let’s verify this on all $\binom{178}{2} = 15{,}753$ pairwise distances.

# Compute pairwise distances in both domains
dist_andrews <- metric.lp(fd_wine)
dist_euclid <- as.matrix(dist(X))

# Extract upper triangle
idx_upper <- upper.tri(dist_andrews)
d_a <- dist_andrews[idx_upper]
d_e <- dist_euclid[idx_upper]

# Filter zero-distance pairs (if any duplicates)
nonzero <- d_e > 1e-10
ratio <- d_a[nonzero] / d_e[nonzero]

cat(sprintf("Distance ratio (Andrews / Euclidean):\n"))
#> Distance ratio (Andrews / Euclidean):
cat(sprintf("  Mean:     %.4f\n", mean(ratio)))
#>   Mean:     1.7725
cat(sprintf("  Median:   %.4f\n", median(ratio)))
#>   Median:   1.7725
cat(sprintf("  SD:       %.2e\n", sd(ratio)))
#>   SD:       3.97e-16
cat(sprintf("  sqrt(pi): %.4f\n", sqrt(pi)))
#>   sqrt(pi): 1.7725


df_dist <- data.frame(euclidean = d_e[nonzero], andrews = d_a[nonzero])

ggplot(df_dist, aes(x = euclidean, y = andrews)) +
  geom_point(alpha = 0.08, size = 0.5, color = "steelblue") +
  geom_abline(slope = sqrt(pi), intercept = 0, color = "red", linewidth = 1) +
  labs(title = "Andrews L² Distance vs Euclidean Distance",
       subtitle = sprintf("Red line: slope = √π ≈ %.4f", sqrt(pi)),
       x = "Euclidean Distance (standardized data)",
       y = "Andrews L² Distance") +
  coord_equal()

The ratio is $\sqrt{\pi} \approx 1.7725$ to machine precision. Any conclusion drawn from the curves — outliers, clusters, similarities — translates exactly back to the original 13 chemical measurements. For regulatory or audit contexts, this mathematical proof is essential: you can report findings in chemical units, not abstract curve distances.

What This Means for Analysis

Because the transformation is isometric, distance-based methods give numerically equivalent results whether you apply them to the curves or to the raw 13-column matrix. FPCA on Andrews curves and prcomp() on the standardized data produce scores that correlate at $\pm 1$ . K-means recovers the same clusters. If all you need is PCA + clustering on a clean matrix, prcomp() and kmeans() are simpler and sufficient.

The value of the functional representation is in the tools that have no direct multivariate equivalent:

FDA Method	Classical Equivalent	What FDA Adds
`outliers.depth.pond()`	Mahalanobis distance	Same core idea, but combined with `outliergram()` and `magnitudeshape()` you can classify outliers by type (magnitude vs shape) — something Mahalanobis alone cannot do
`cluster.kmeans()`	`kmeans()` on raw data	Same clusters, but centroids are curves you can plot and overlay — a visual fingerprint, not 13 numbers
`fdata2pc()`	`prcomp()`	Same variance decomposition; eigenfunctions are the visual version of a loading table
`boxplot()`	13 separate control charts	No equivalent. One chart monitors all 13 chemicals simultaneously via functional depth
`tolerance.band()`	Multivariate tolerance region	No equivalent. Defines a nonparametric envelope in function space; new wines are checked against a single band
`group.test()`	MANOVA	Nonparametric permutation test; bootstrap CIs show where on the curve profiles diverge

The bottom line: Andrews curves earn their keep when you use the functional toolbox — depth-based outlier classification, functional boxplots, tolerance bands, simultaneous monitoring. For methods where classical statistics already gives the same answer (PCA, k-means), the functional version adds visualization and pipeline integration, but not new statistical information.

Next Steps

The remaining articles apply FDA methods to these Andrews curves:

Outlier Detection: Three complementary methods classify 9 anomalies by type with specific corrective actions.
Clustering & Variable Importance: K-means, fuzzy c-means, FPCA, and permutation testing.
Quality Control: Functional boxplots, tolerance bands, and a three-phase monitoring workflow.

References

Andrews, D.F. (1972). Plots of high-dimensional data. Biometrics, 28(1), 125–136.
